Roadking Transport Hauler Trailer – Heavy Duty Vehicle Hauler
Roadking Transport Hauler Trailer – Heavy Duty Vehicle Hauler

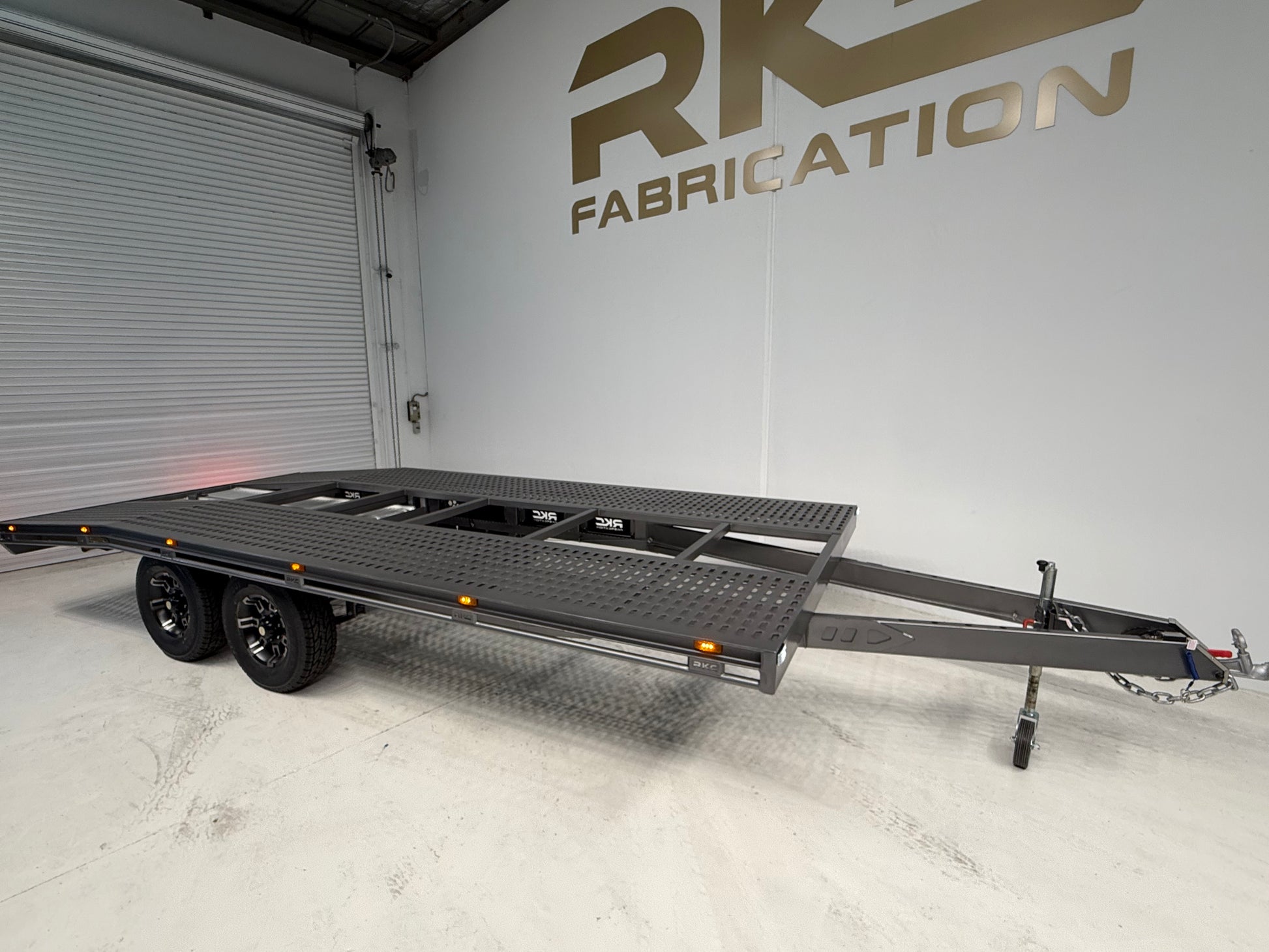

Cars, side-by-sides, machinery — drive it on, strap it down, go. The Roadking Transport Hauler gives you a 5.5 × 2.4M (18 × 8ft) true flat floor, 3,500kg ATM and 2,424kg of payload, with a beaver tail and 2.3M ramps stored in the deck — $18,500 inc GST. Built in Campbellfield. No shortcuts. Just serious trailers.
Why the Transport Hauler

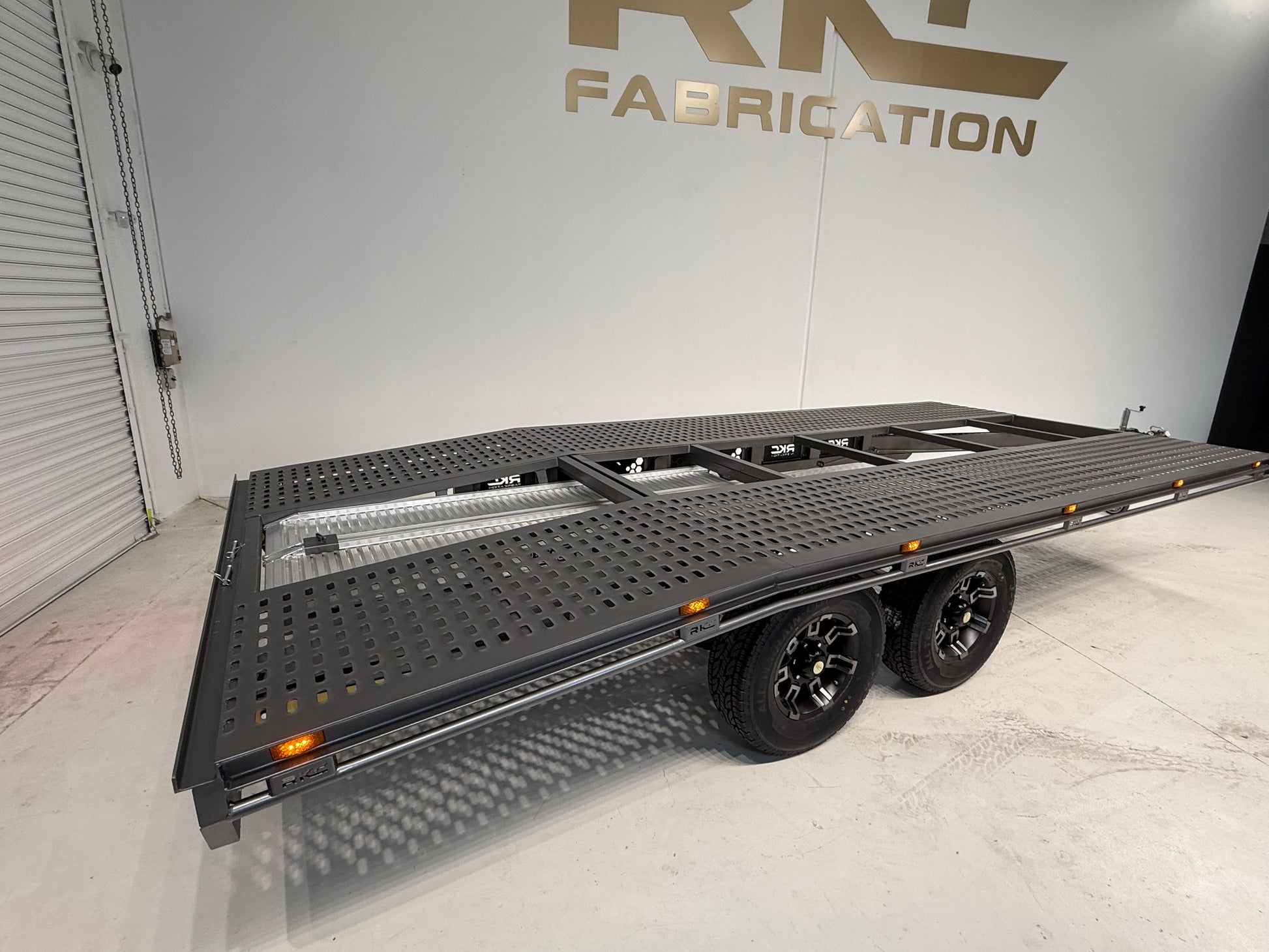

- True Flat Floor: Duragal truss chassis, no wheel arches. 13.2m² of deck for wide loads.

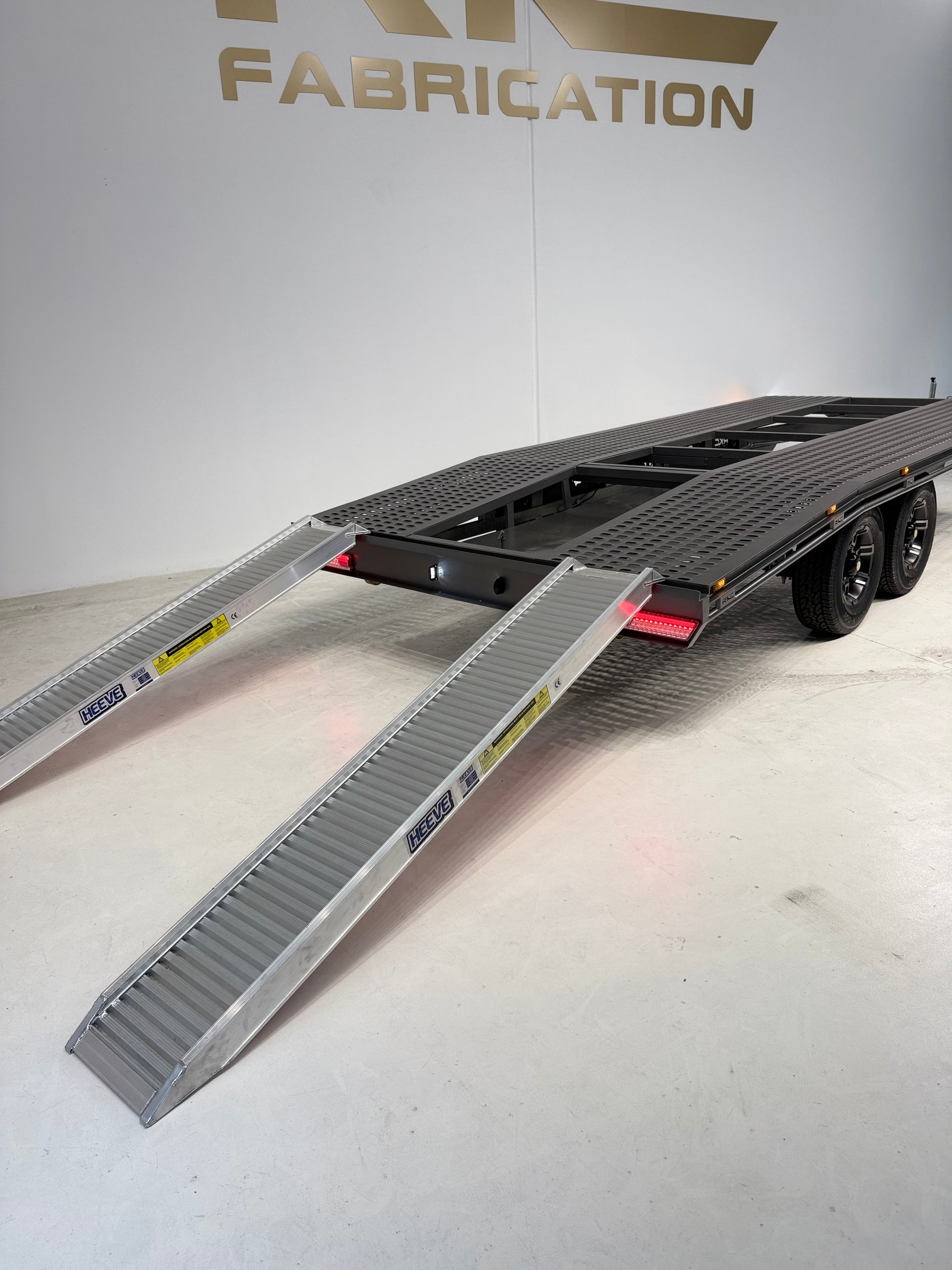

- Easy Loading: Beaver tail rear and 2.3M aluminium ramps that store inside the deck. Nothing rattling around in the ute.

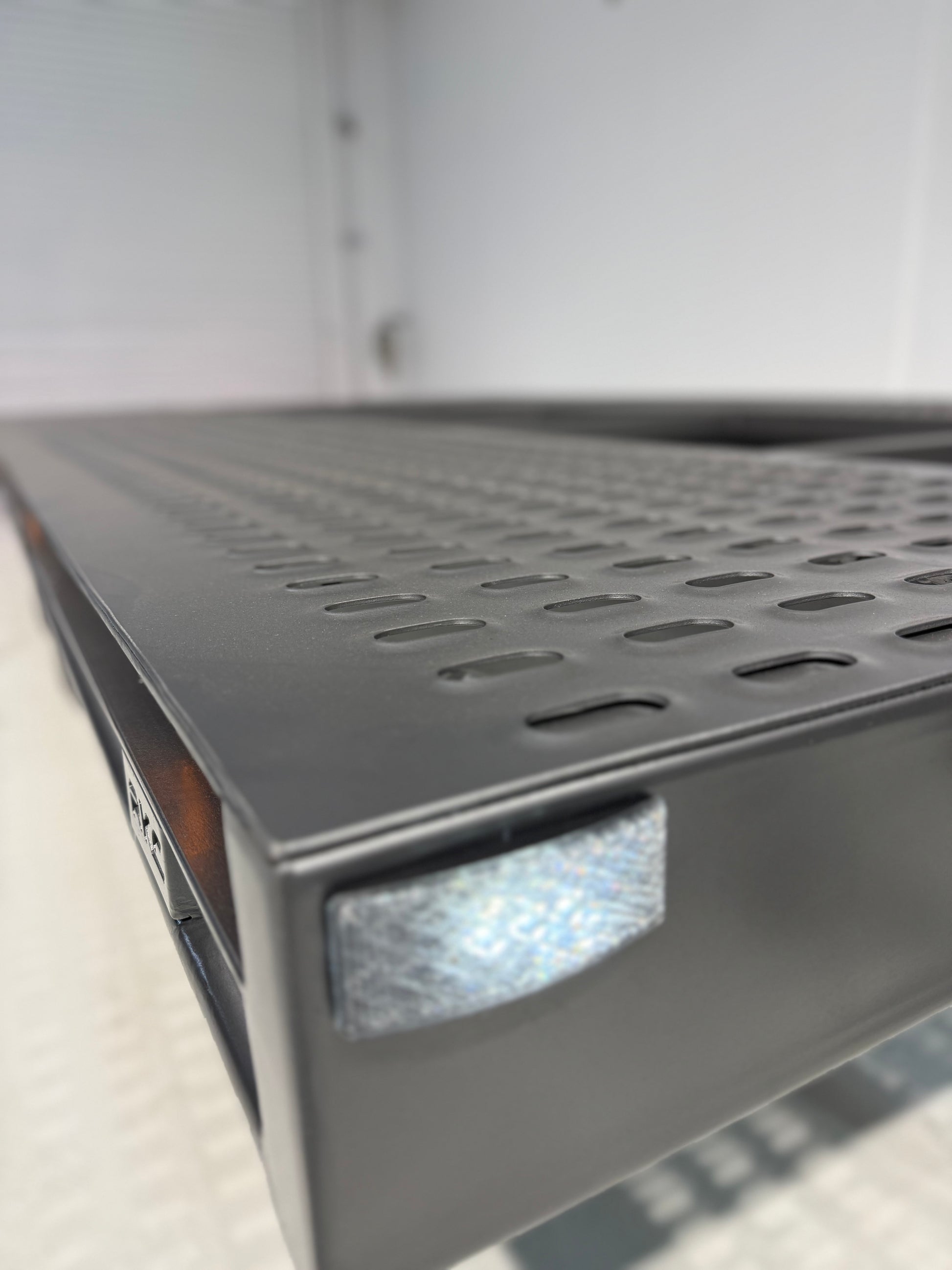

- Transporter Floor: Perforated steel deck with open centre. Grip for tyres, drains water and mud.
- 2,424kg Payload: 1,076kg tare on a 3,500kg ATM, with 3500kg roller rocker suspension and 12" brakes.
- Built Your Way: Standard lengths from 5.0M to 8.5M, or custom to suit your vehicle.
Specifications
| Price | $18,500 inc GST |
| Model | Roadking Transport Hauler |
| ATM | 3,500kg |
| Tare | 1,076kg |
| Payload | 2,424kg |
| Deck Size | 5500mm × 2400mm (18'1" × 7'10") |
| Overall Length | 7000mm (23') approx. |
| Chassis | Australian-made Duragal truss chassis, flat floor |

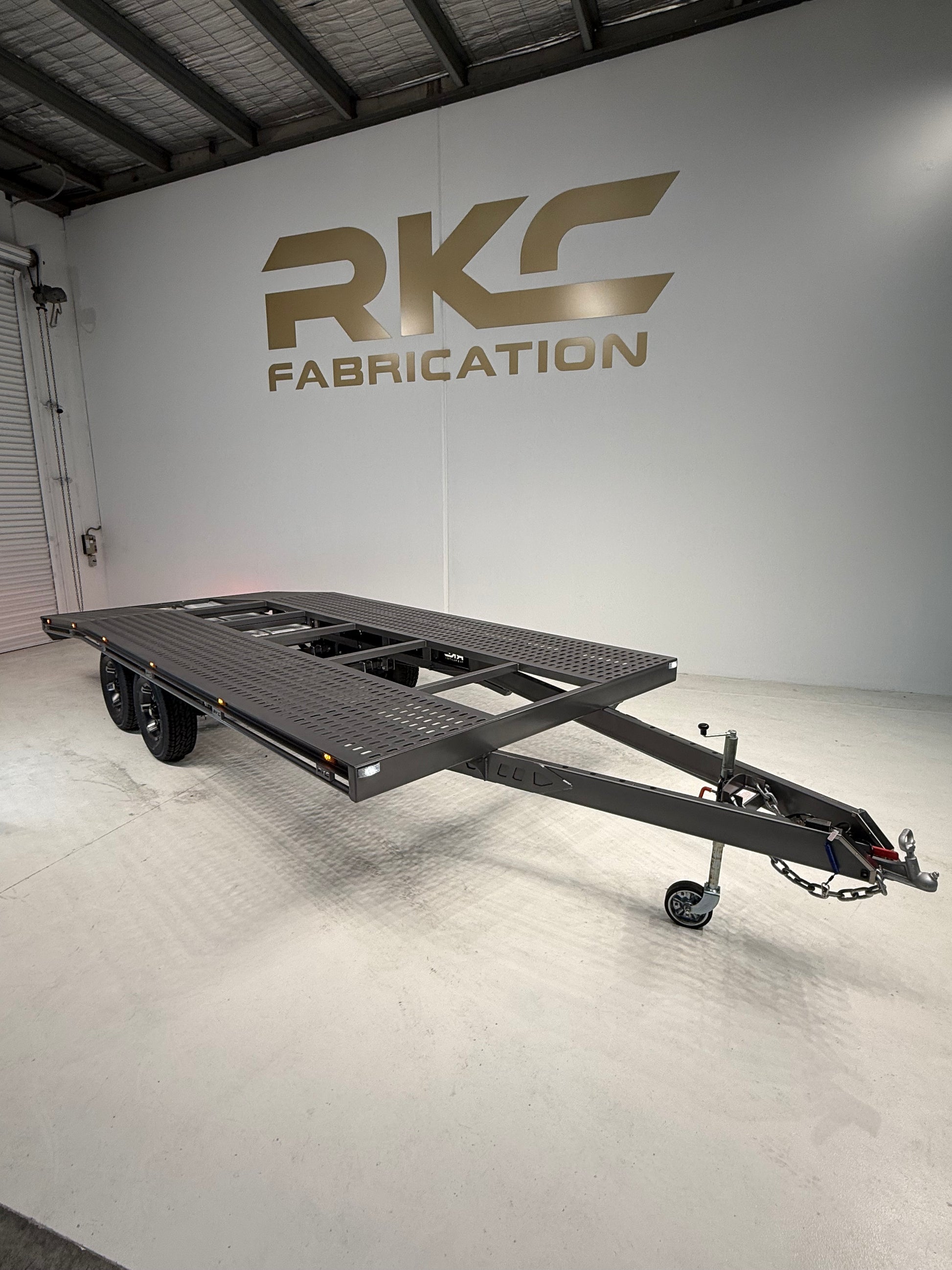

| Drawbar | 1500mm, 150×50×4mm |
| Coupling | 50mm ball coupling, 3500kg rated |
| Safety Chains | 3.5T bolt-on |

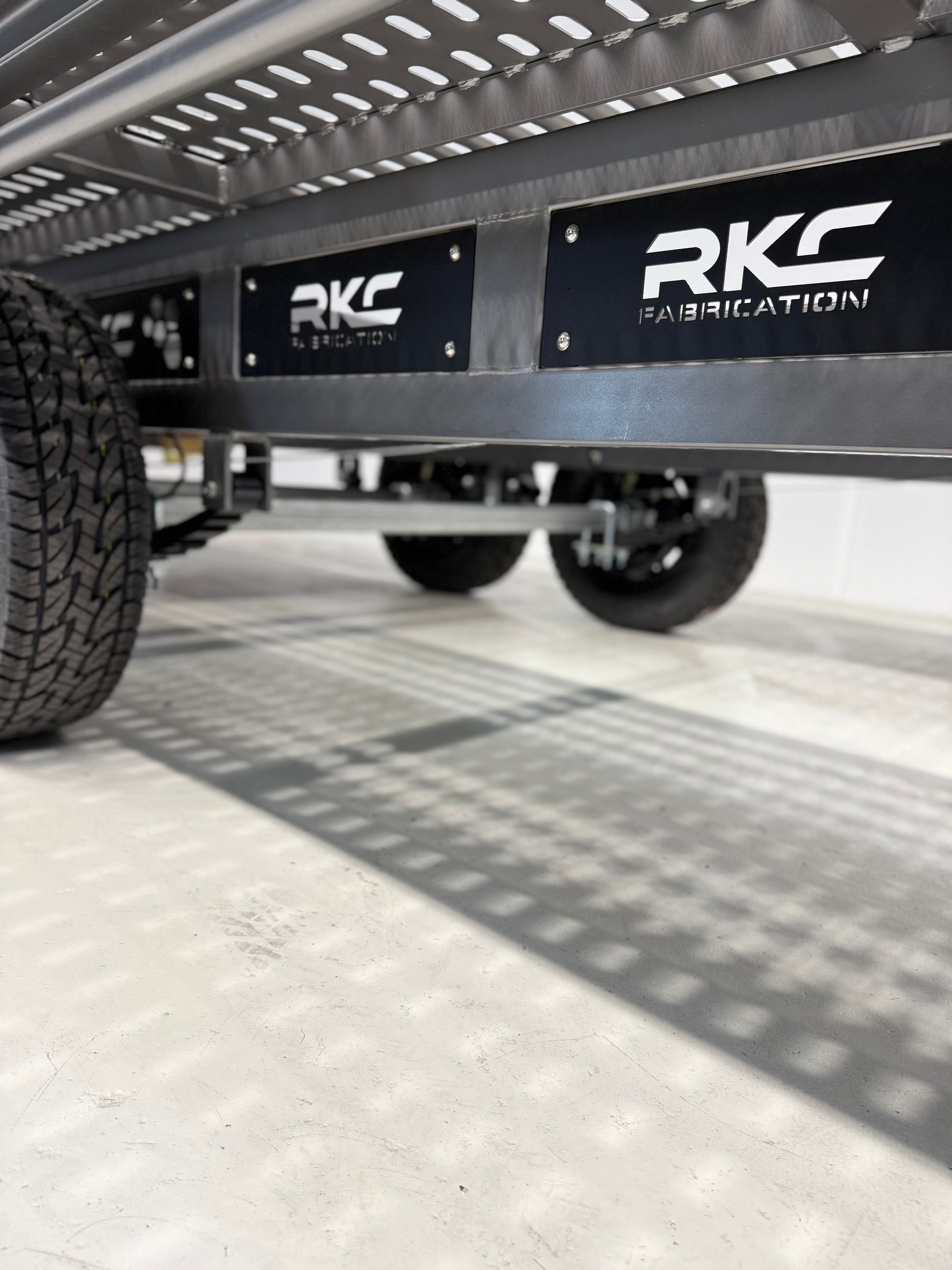

| Suspension | 3500kg roller rocker, tandem |
| Brakes | 12" drum |

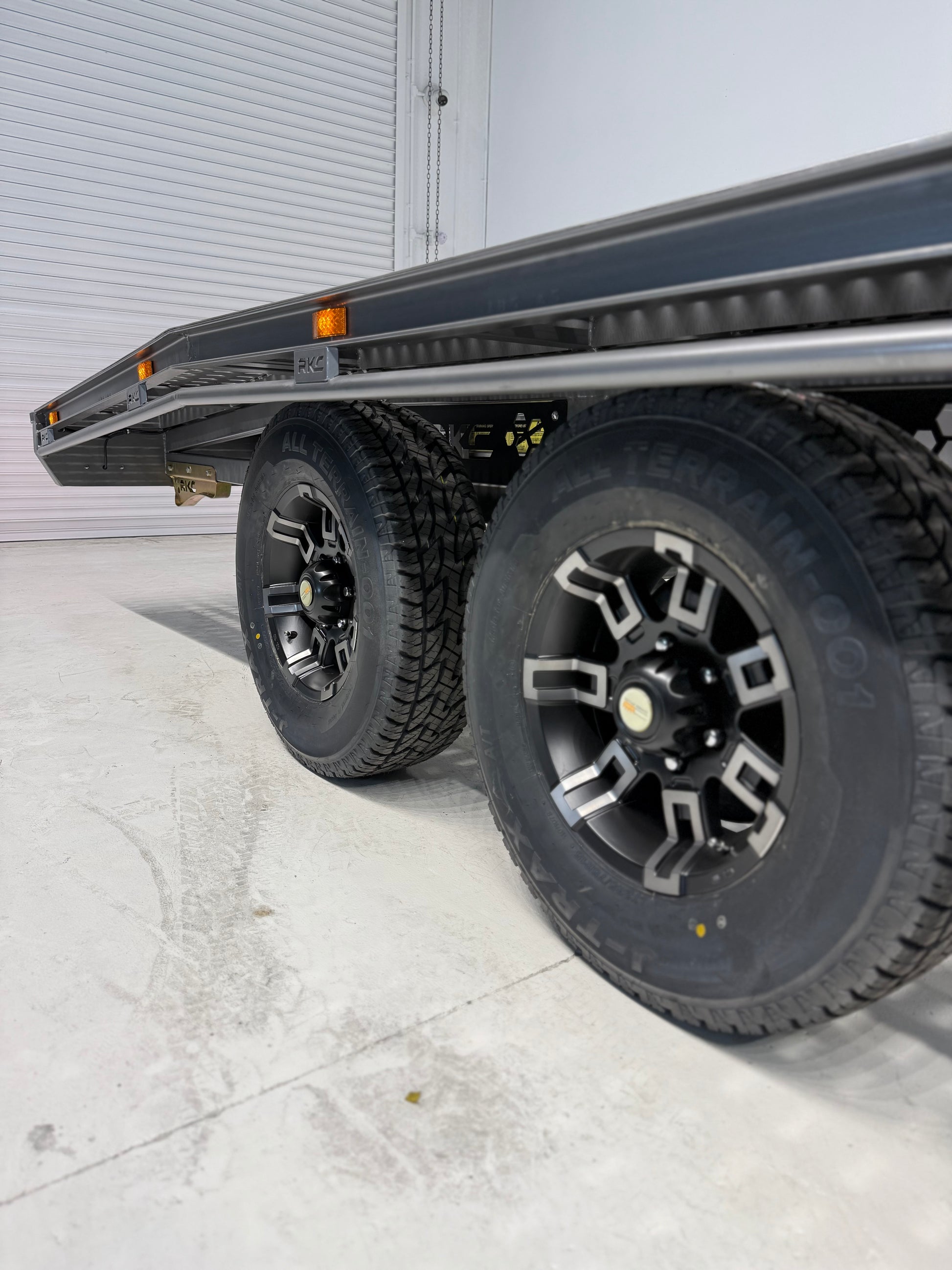

| Wheels & Tyres | 15" alloys, 235/75 all-terrain |
| Floor | Perforated steel transporter floor, open centre |

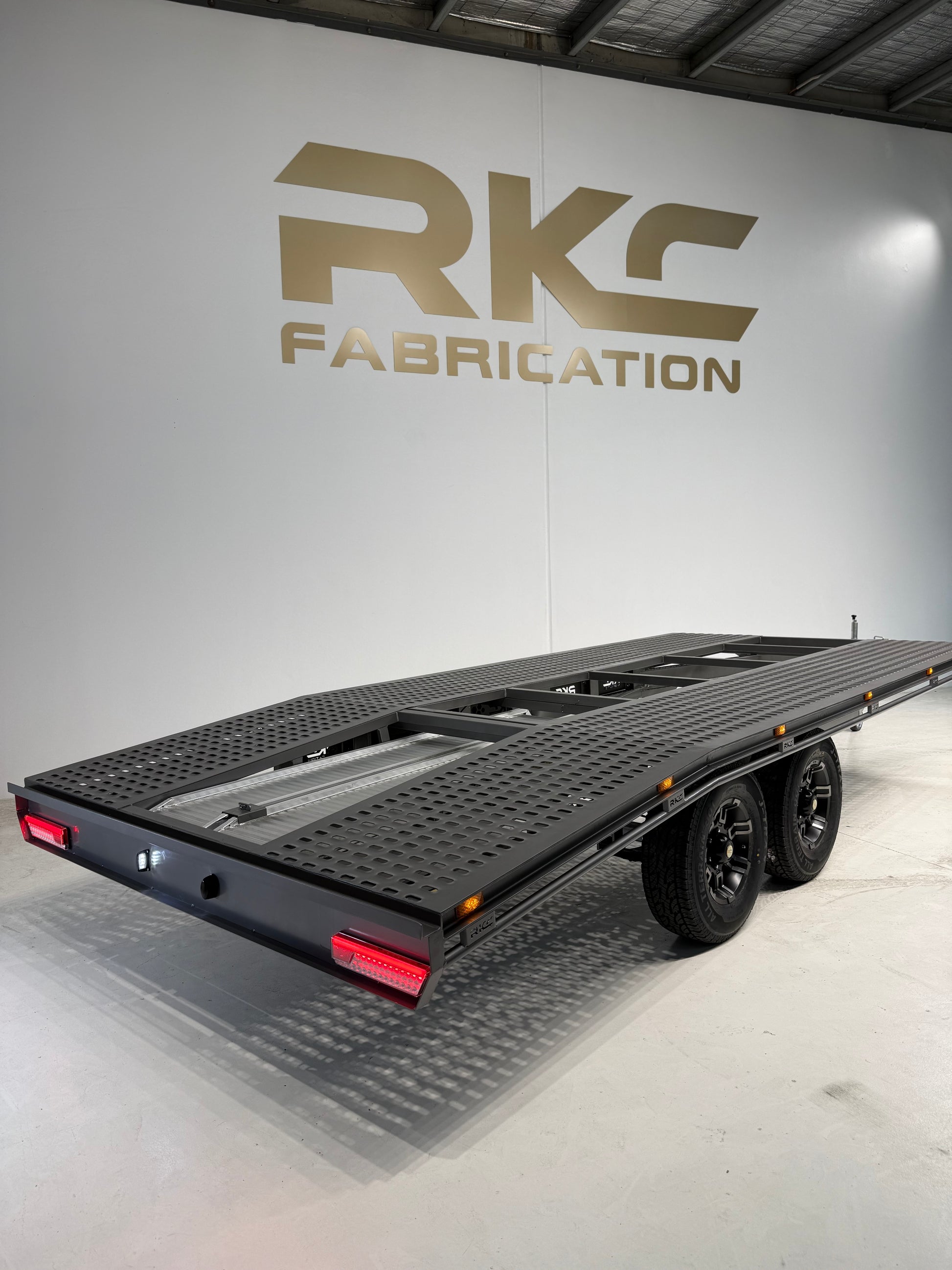

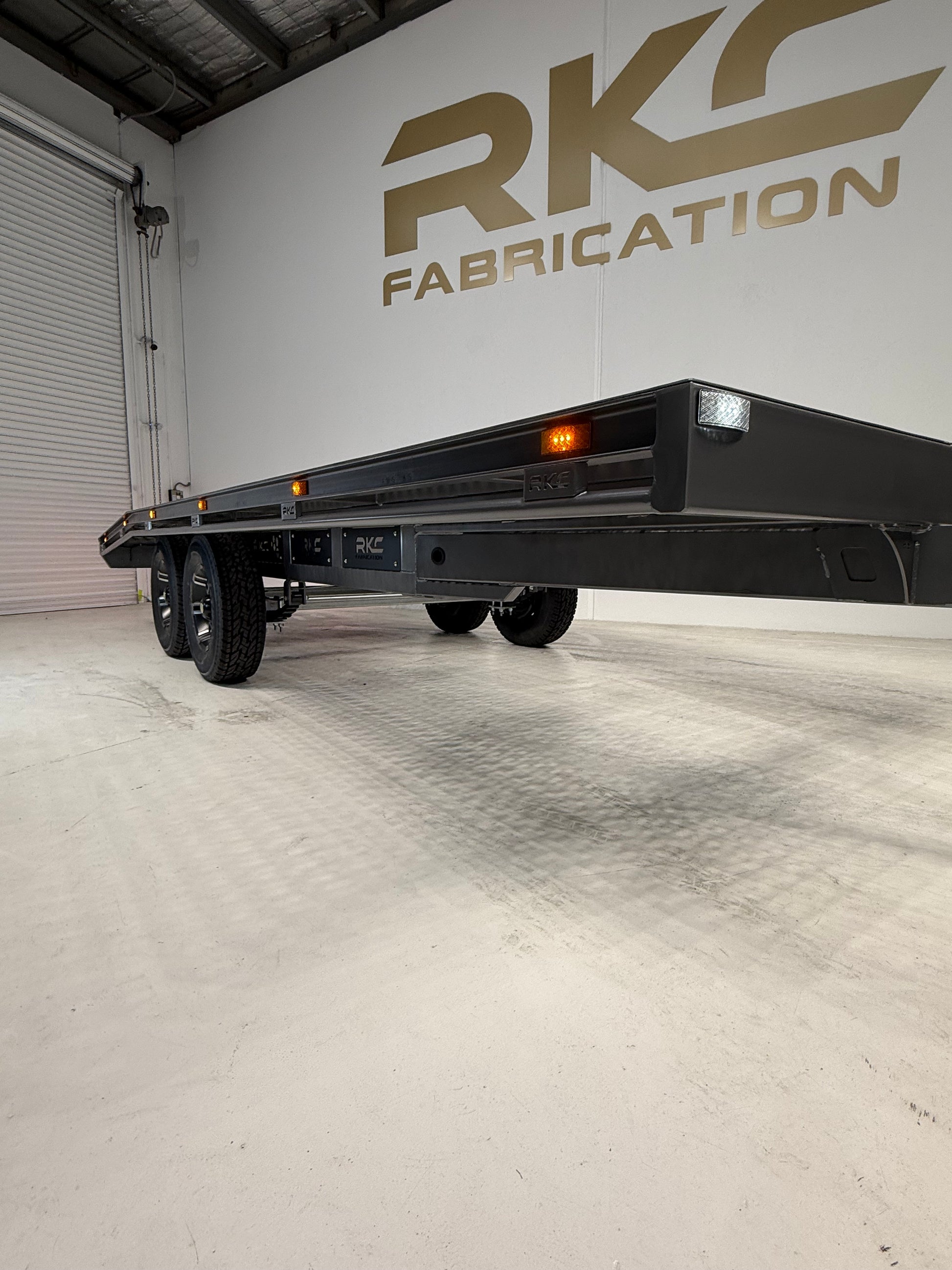

| Deck Layout | Flat floor, no wheel arches, beaver tail rear |
| Ramps | 2.3M aluminium, in-deck storage |
| Sides | C-channel with recessed lights |
| Side Rail | RKC rope rail |
| Rear | Taillight housing |
| Lighting | RKC light package with breakaway system |
| Electrical | 7-pin trailer plug |
| Jockey Wheel | Heavy duty |
| Finish | Gunmetal |
| Lead Time | 4–8 weeks from signed plans |
Frequently Asked Questions
How much does the Transport Hauler cost?
$18,500 inc GST for the 5.5 × 2.4M build shown. Other lengths are quoted to suit.
What can it carry?
Cars, work vehicles, side-by-sides or machinery up to 2,424kg payload, on a 3,500kg ATM.
What sizes are available?
Standard decks are 2400mm wide in 5.0M, 5.5M, 6.0M, 6.5M, 7.5M, 8.0M and 8.5M lengths. We also custom build from 2 metres to over 10 metres.
How do the ramps work?

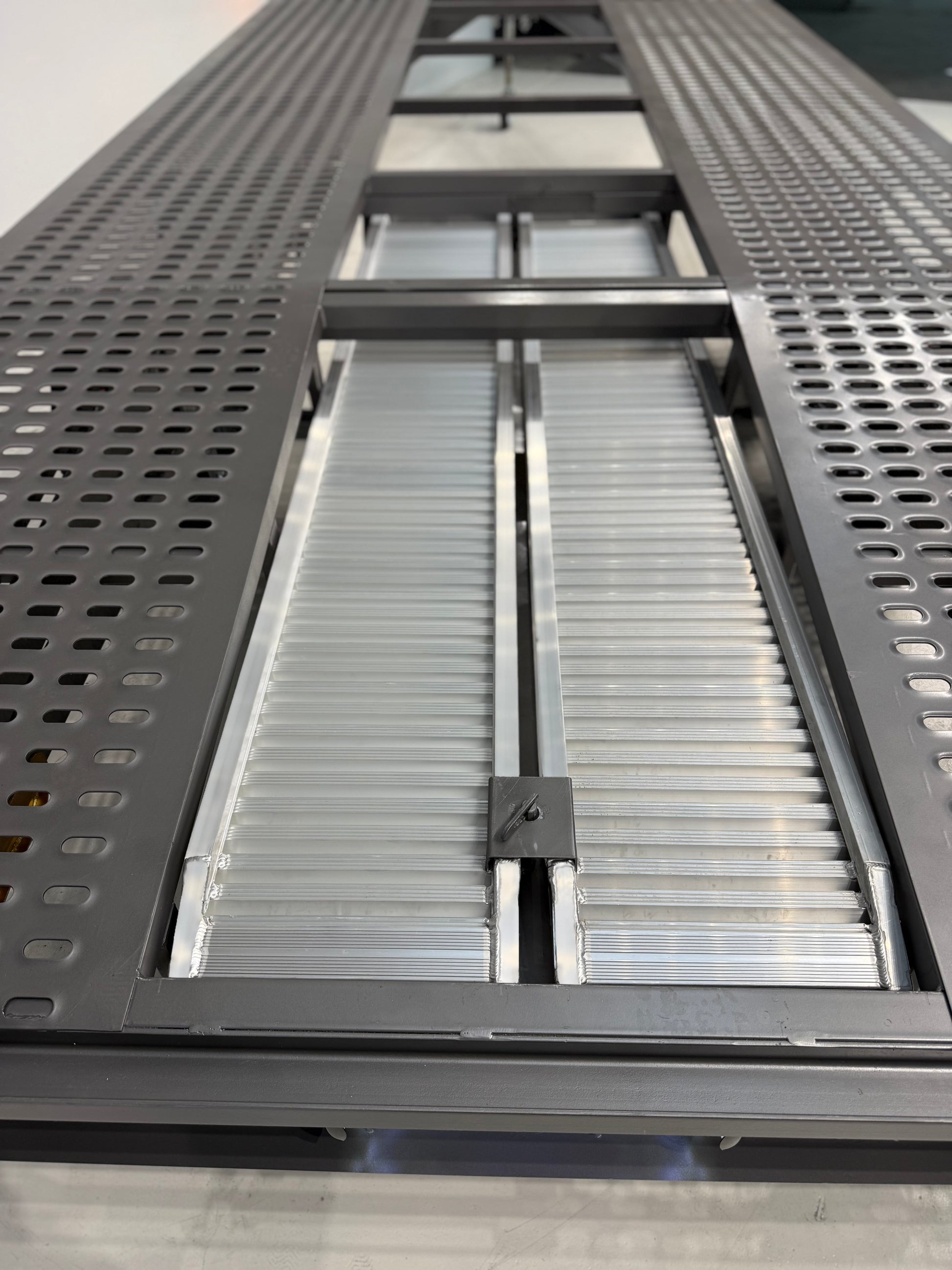

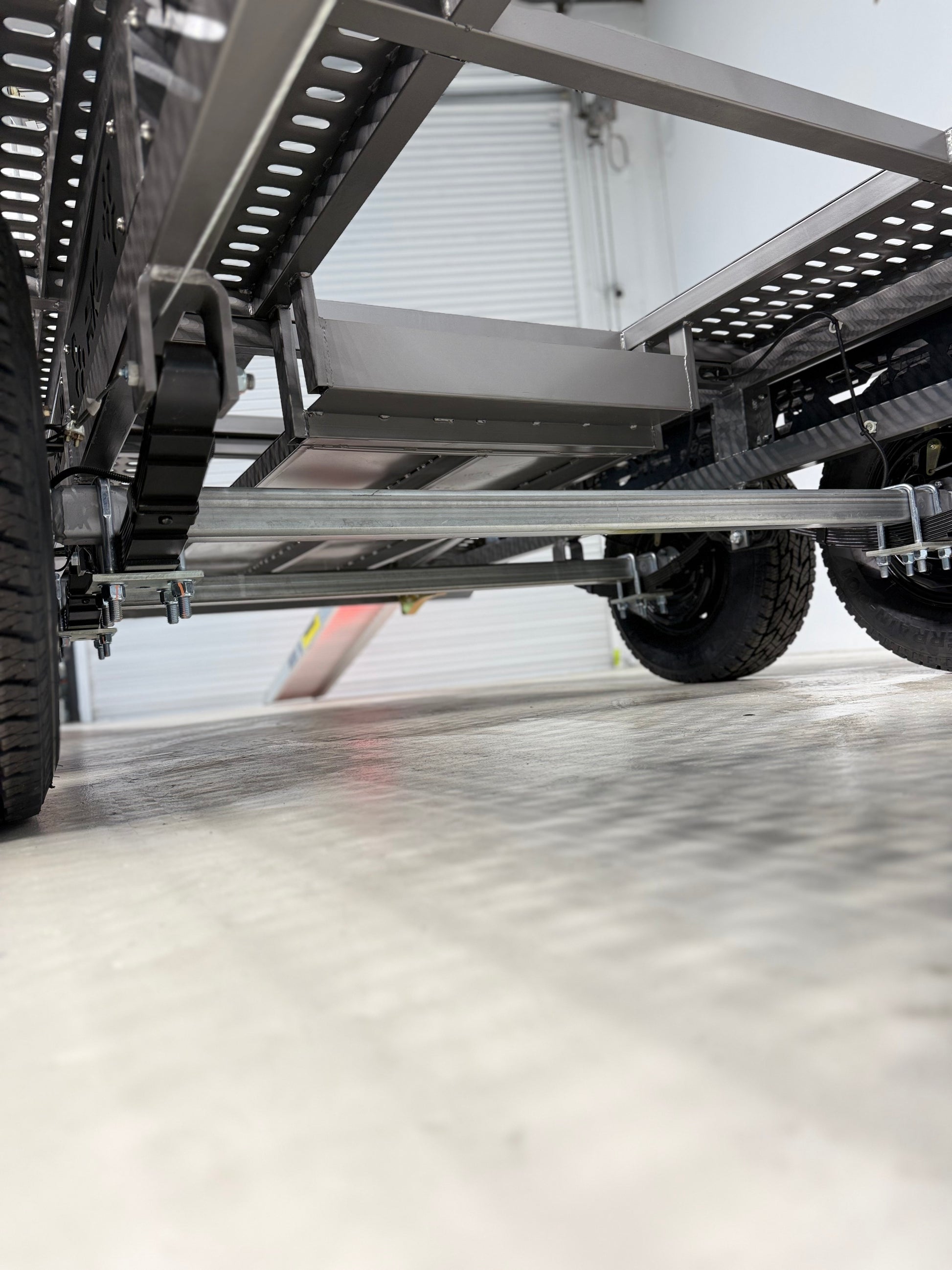

Two 2.3M aluminium ramps slide into storage inside the deck. Pull them out, hook them on the beaver tail and drive on.
Where is it made?
In Campbellfield, Victoria, by Roadking Chassis. We deliver Australia-wide and to New Zealand. Ask us for a freight quote.
How Your Build Works
- Quote: Tell us what you're hauling. We'll spec it to suit.
- Plans: Once your deposit is in, our drafting team sends a floor plan with every measurement and option.
- Build Slot: Sign off the plans and your slot is locked in — usually 4–8 weeks out.
- Updates: You'll hear from us at the start, halfway and near completion.
- Handover: Photos of the finished build, final payment, then it's yours.
Built tough. Built right. Built Roadking. Message us to start your build.
