Roadking H2 Hauler Standard Model – Heavy Duty Toy Hauler
Roadking H2 Hauler Standard Model – Heavy Duty Toy Hauler

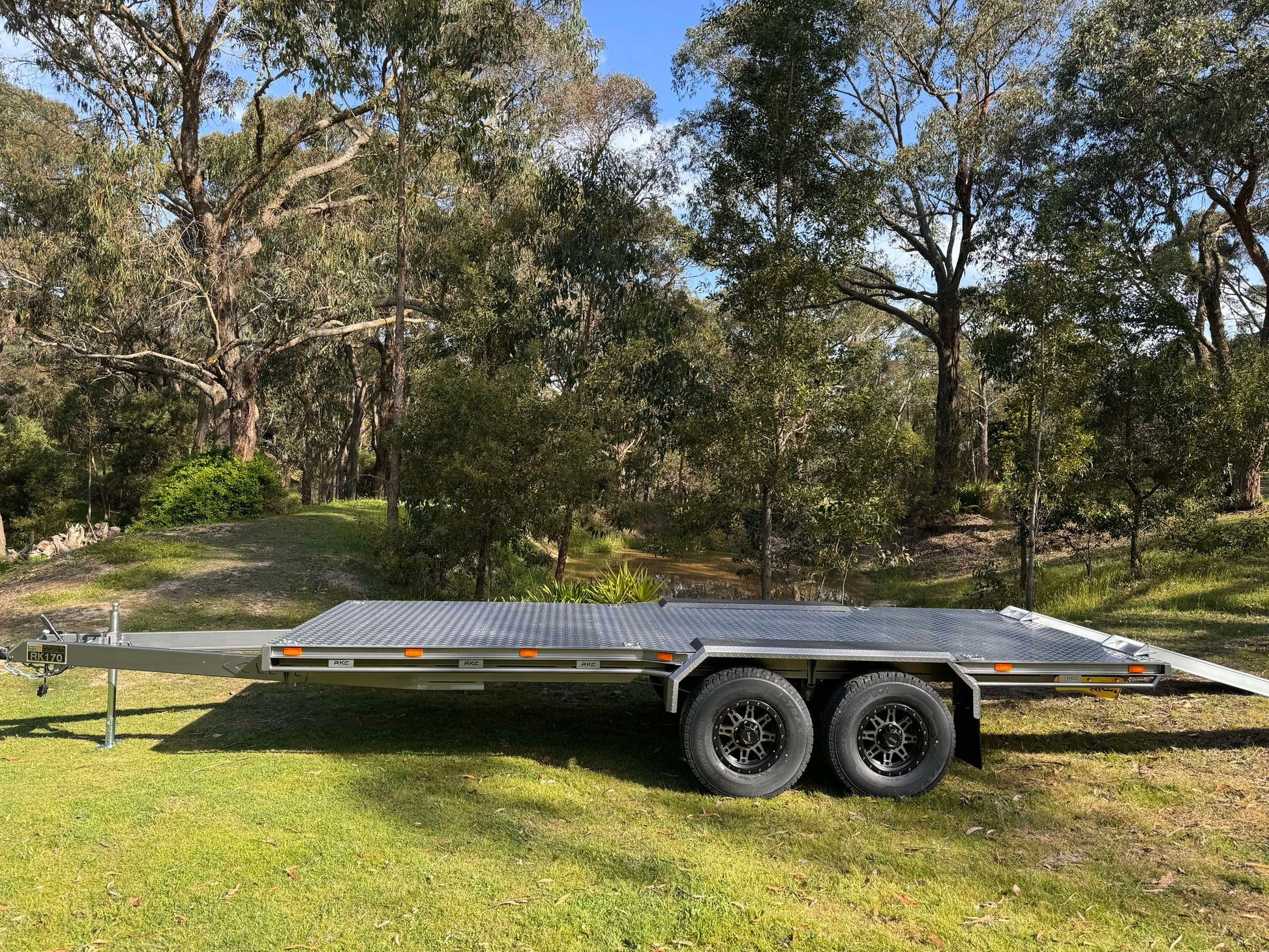

Built for the track that turns to dirt. The Roadking H2 runs 3500kg off-road coil suspension, a Cruisemaster DO-35 coupling and 16" alloys on all-terrains, finished in Tuff Coat — from $19,000 inc GST, built to your size. Quads, side-by-sides, bikes or a full load of gear. Built in Campbellfield. No shortcuts. Just serious trailers.
Why the H2
- 3500kg Off-Road Coil Suspension: Heavy-duty coils on a tandem axle with 12" brakes. Soaks up corrugations, tracks straight loaded.
- Cruisemaster DO-35 Coupling: Articulates through ruts and washouts where a ball coupling binds.

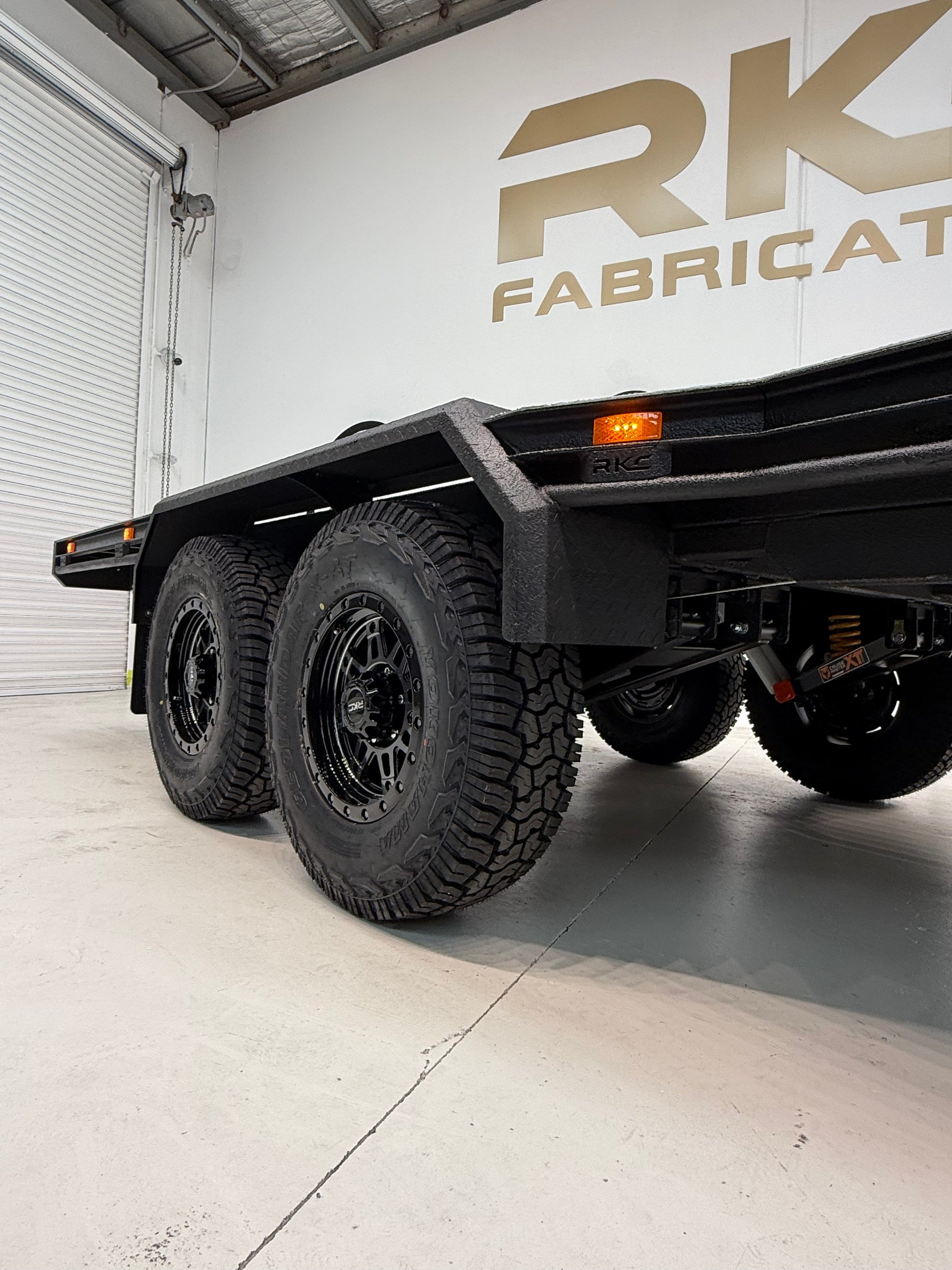

- 16" Alloys, 265/75 A/Ts: Bigger rubber for clearance and grip off the bitumen.
- Built to Carry: 8 flush tie-down points, raised 50mm checker plate arches and an RKC rope rail.
- Armoured Finish: Tuff Coat protection paint, TuffDek stone shielding on the drawbar, and RKC rear skid rails with recovery points.
Specifications
| Price | From $19,000 inc GST |
| Model | Roadking Hauler H2 Standard |
| ATM | 3,500kg |

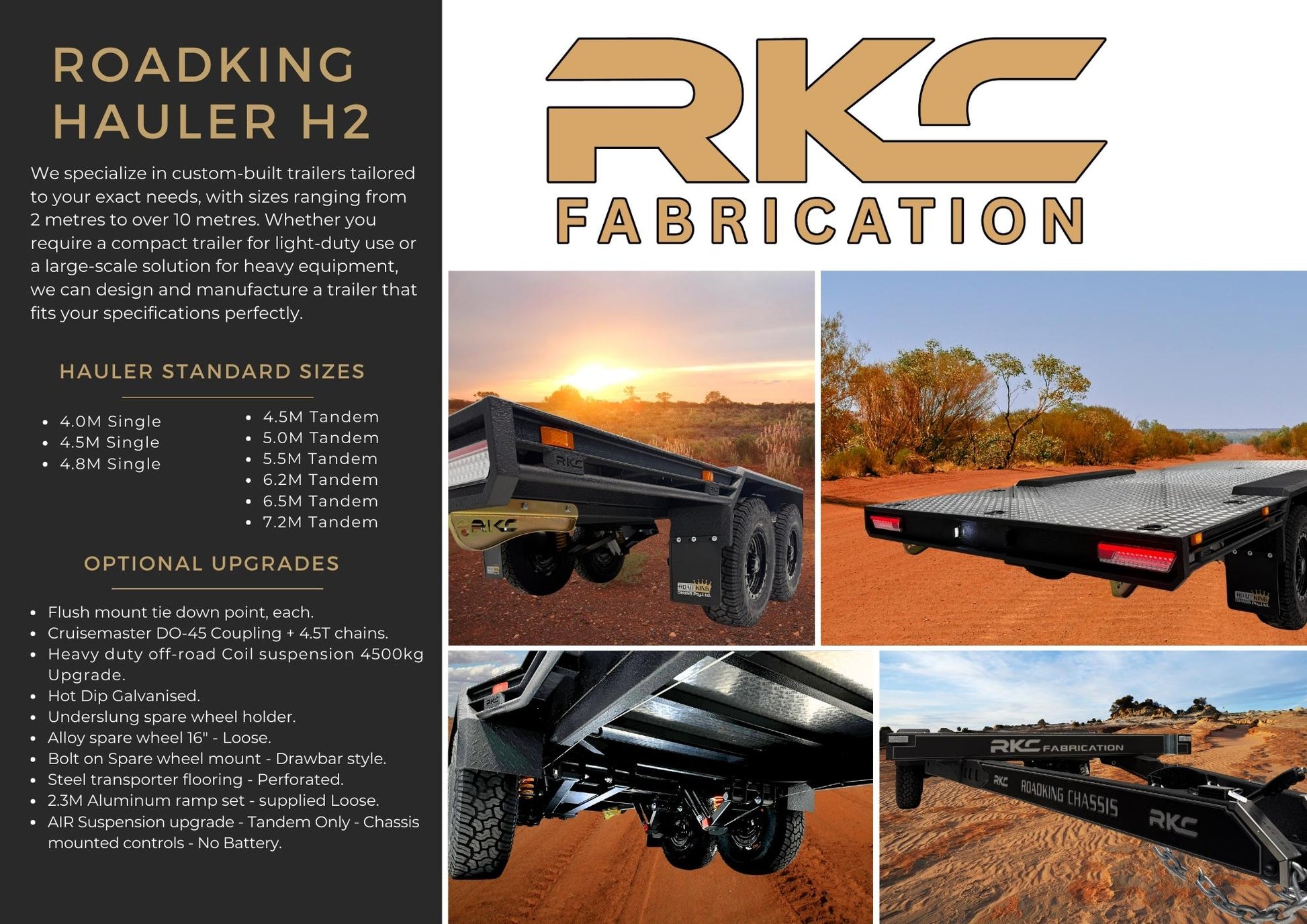

| Sizes | Built to order: 4.0M–4.8M single, 4.5M–7.2M tandem, or custom |
| Chassis | Australian-made Duragal, 150×50×3mm main rails with 50×50×3mm raiser |

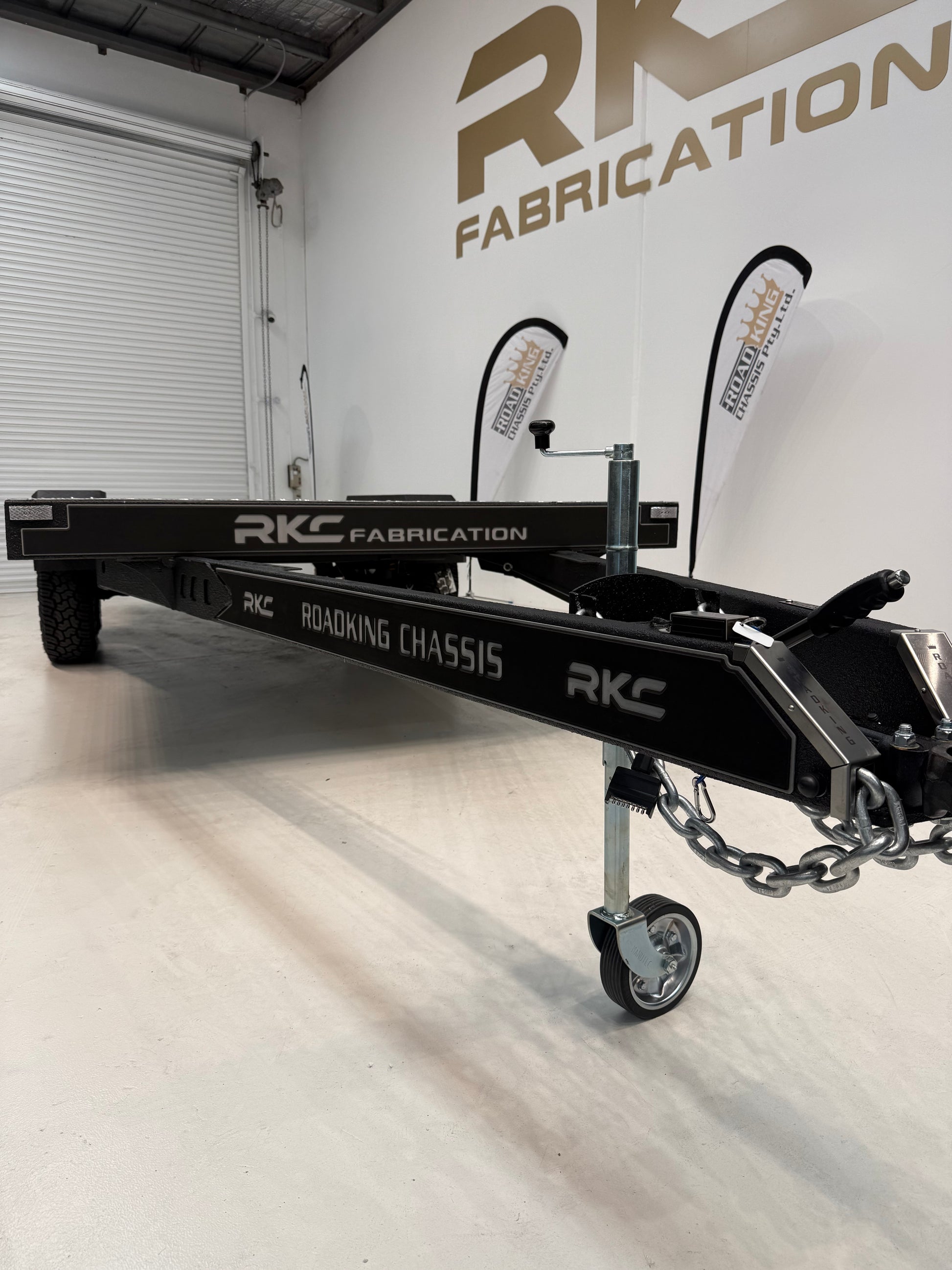

| Drawbar | 1950mm, 150×50×4mm |
| Coupling | Cruisemaster DO-35 |
| Safety Chains | 3.5T bolt-on |
| Suspension | Heavy-duty off-road coil, 3500kg tandem |
| Brakes | 12" drum |
| Wheels & Tyres | 16" alloys, 265/75 all-terrain |

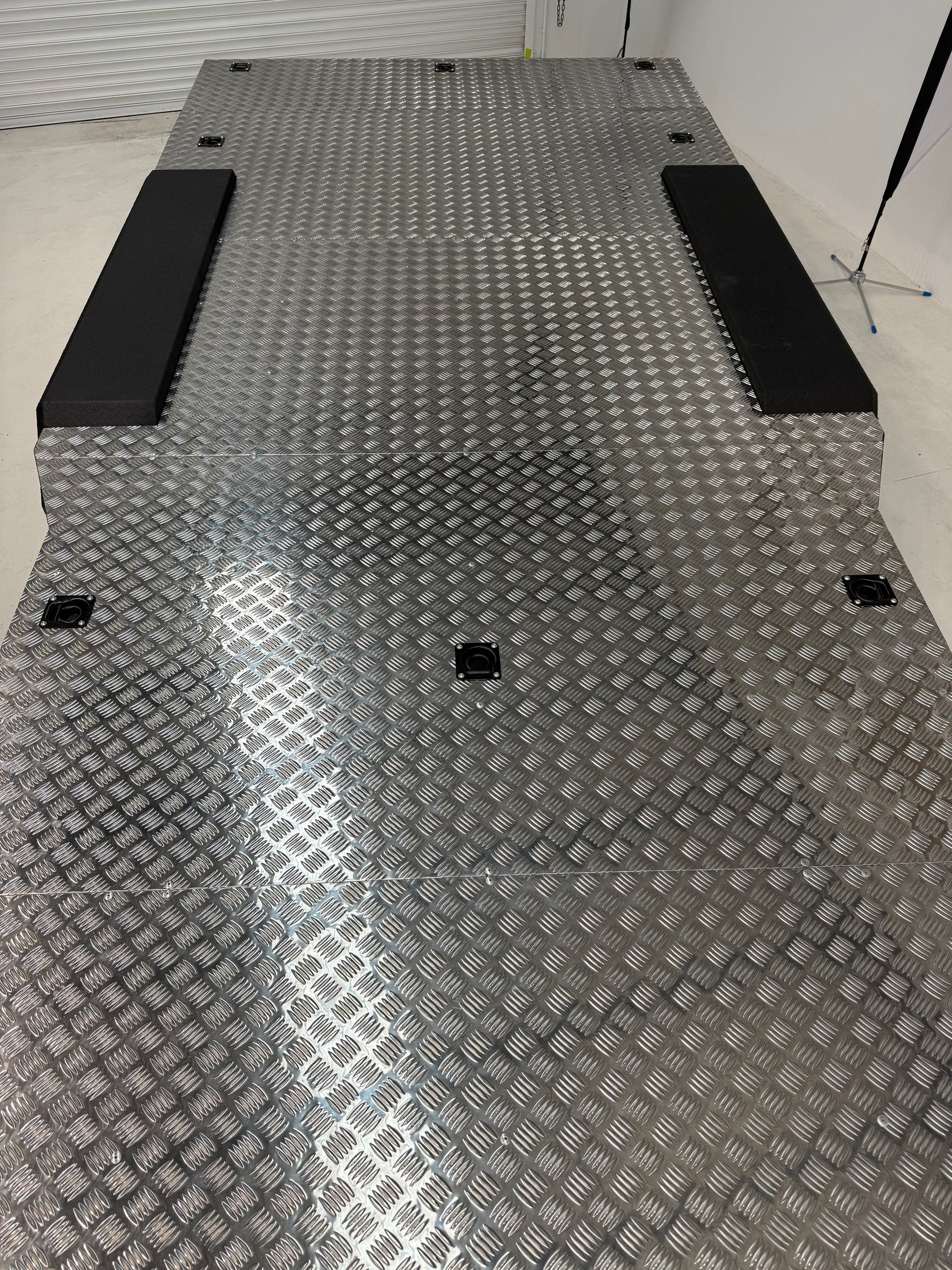

| Floor | 3mm aluminium, pop-riveted |
| Wheel Arches | Raised 50mm steel checker plate |
| Tie-Down Points | 8 × flush mount |
| Sides | C-channel with recessed lights |
| Side Rail | RKC rope rail |
| Rear Protection | RKC rear skid rails & recovery points, taillight housing |
| Finish | Tuff Coat protection paint |
| Stone Shielding | TuffDek on drawbar |
| Lighting | RKC light package with breakaway system |
| Electrical | 7-pin trailer plug |
| Jockey Wheel | Heavy duty |
| Lead Time | 4–8 weeks from signed plans |
Popular Upgrades
- Cruisemaster DO-45 coupling + 4.5T chains
- 4500kg off-road coil suspension
- Air suspension (tandem only)
- Hot dip galvanised chassis
- Headboard & sides
- Underslung spare wheel holder & 16" alloy spare
- Perforated transporter floor

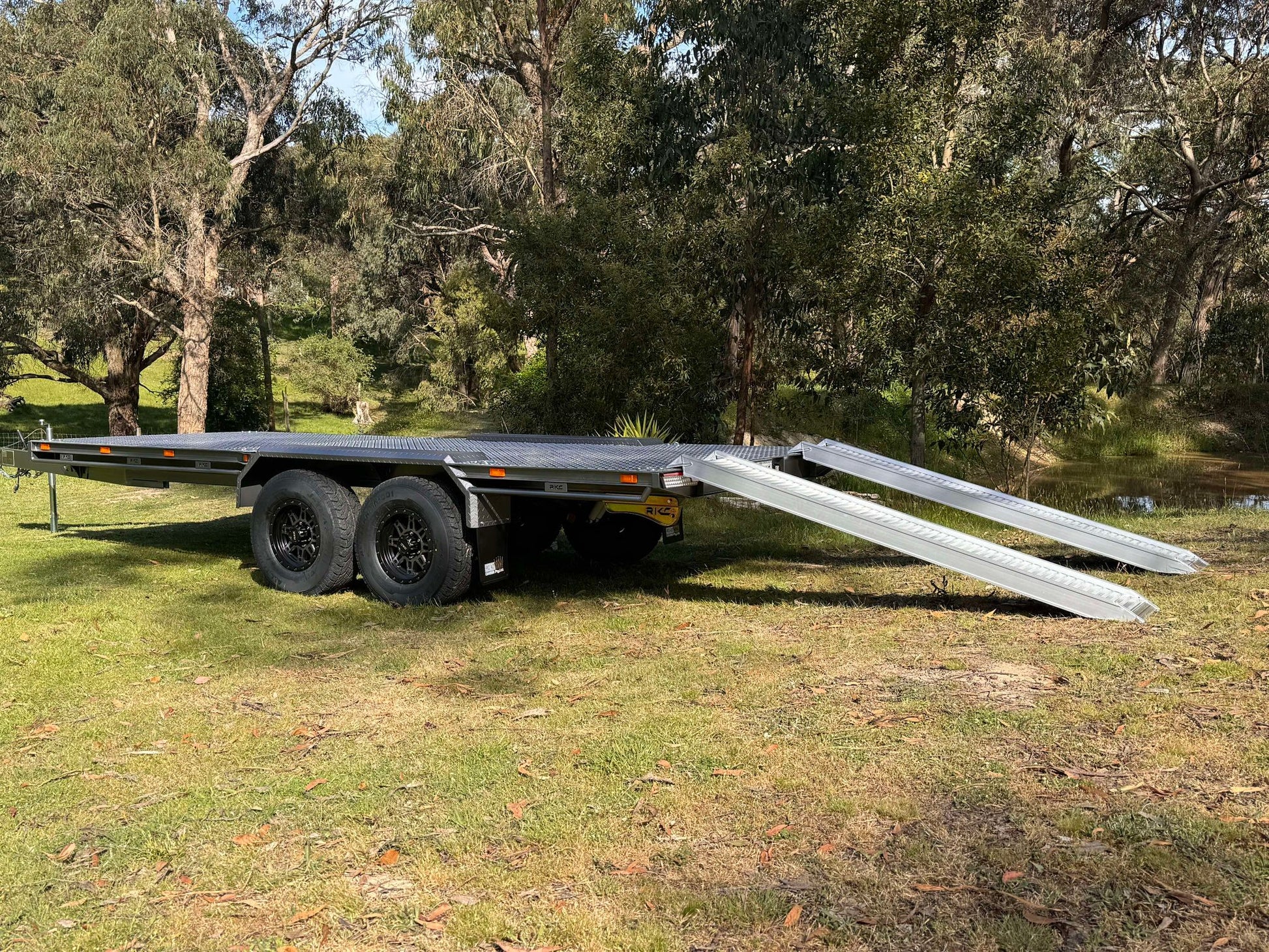

- 2.3M aluminium ramps
- Canopy with KickAss power system
Frequently Asked Questions
How much does the H2 Hauler cost?
From $19,000 inc GST. Final price depends on size and options. Send us your setup and we'll quote it.
What sizes does the H2 come in?
Standard sizes run from 4.0M single to 7.2M tandem. We also custom build from 2 metres to over 10 metres.
What's the difference between the H1 and H2?
The H2 is our heavy-duty off-road model: coil suspension, Cruisemaster DO-35 coupling, 12" brakes, 16" off-road wheels and Tuff Coat protection. The H1 is a lighter-duty flat-floor hauler on beam axles.
What can it carry?

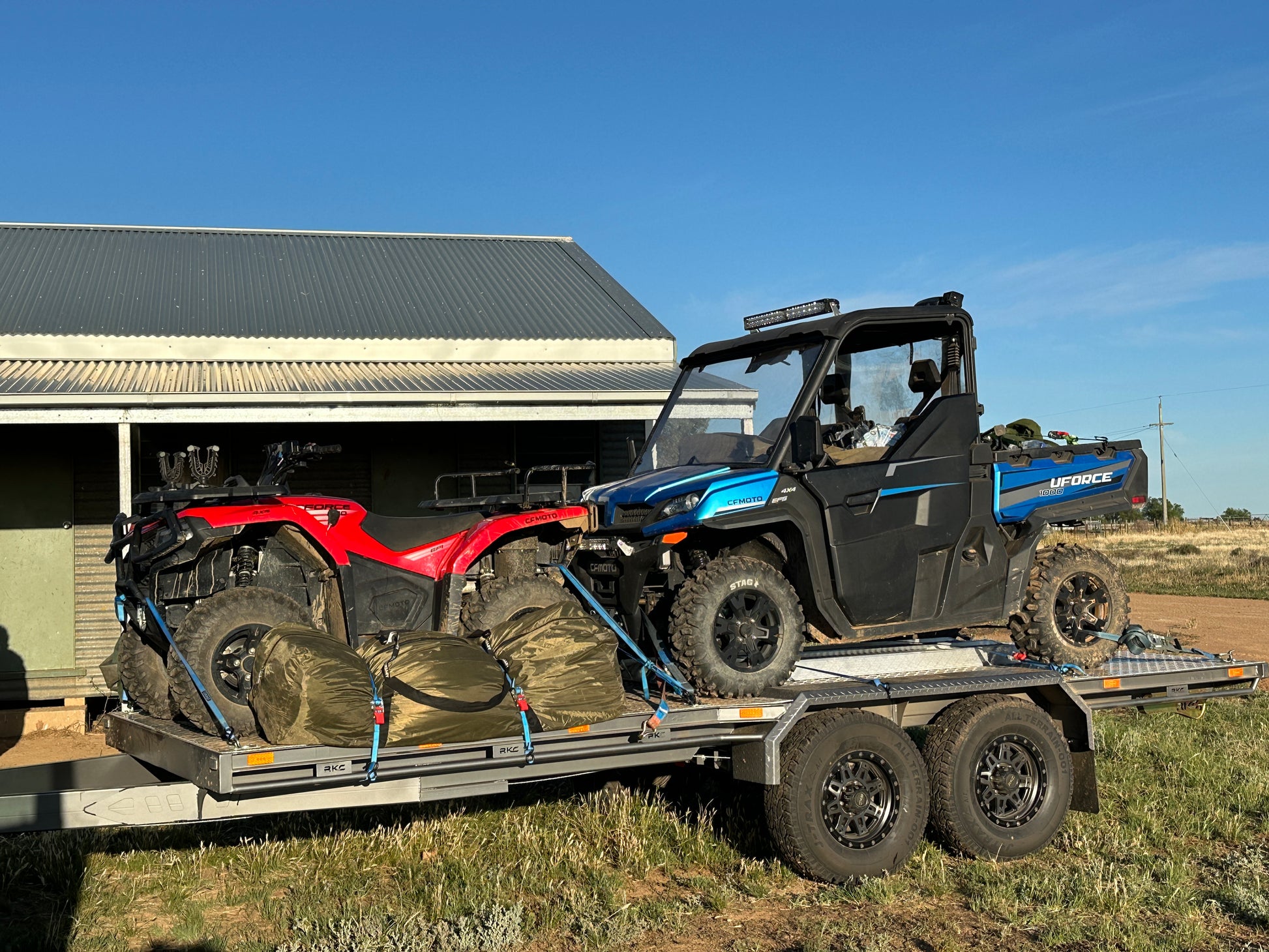

Quads, side-by-sides, dirt bikes, jet skis, equipment or general gear, rated to a 3,500kg ATM with 8 flush tie-down points.
Where is it made?
In Campbellfield, Victoria, by Roadking Chassis. We deliver Australia-wide and to New Zealand. Ask us for a freight quote.
How Your Build Works
- Quote: Tell us what you're hauling. We'll spec it to suit.
- Plans: Once your deposit is in, our drafting team sends a floor plan with every measurement and option.
- Build Slot: Sign off the plans and your slot is locked in — usually 4–8 weeks out.
- Updates: You'll hear from us at the start, halfway and near completion.
- Handover: Photos of the finished build, final payment, then it's yours.
Built tough. Built right. Built Roadking. Message us to start your build.
