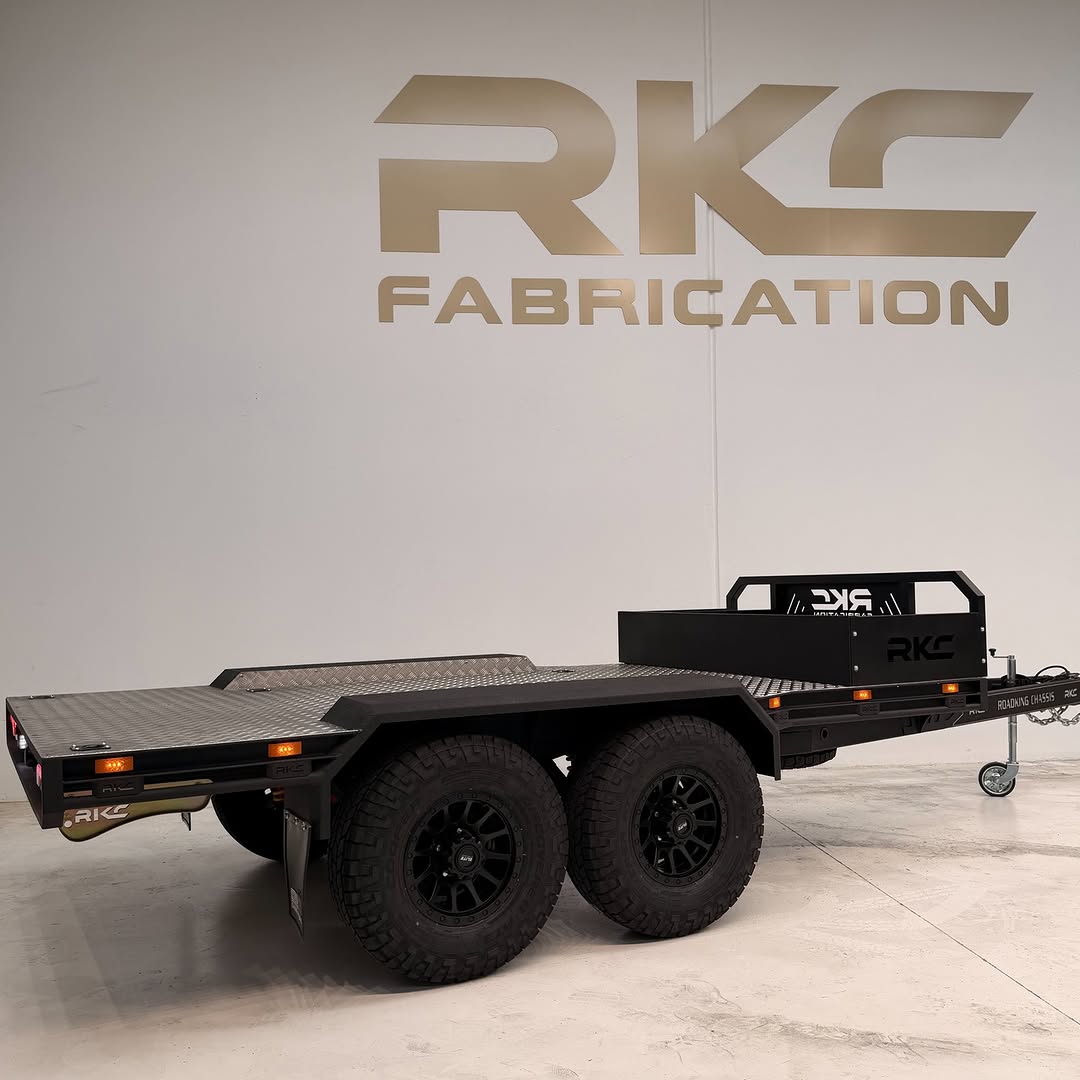

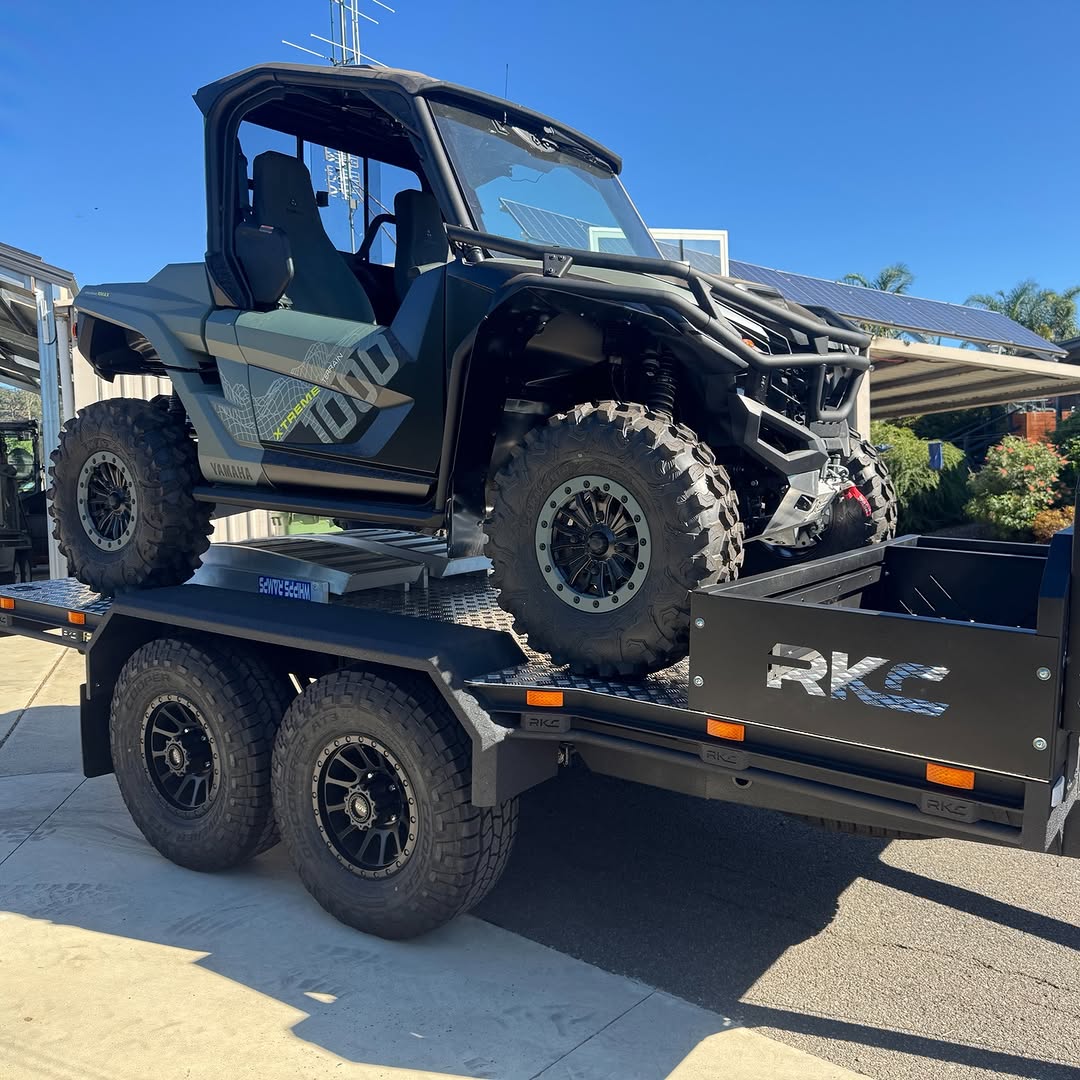

Roadking H2 Hauler - 3500kg Heavy-Duty Australian-Made Trailer
Roadking H2 Hauler - 3500kg Heavy-Duty Australian-Made Trailer
Built for the track that turns to dirt. The Roadking H2 Hauler puts a 4.0 × 2.1M (13 × 7ft) deck on 3500kg off-road coil suspension with a Cruisemaster DO-35 coupling and Cooper AT3 rubber — $25,000 inc GST as built. Quads, side-by-sides, bikes or a full load of gear. Built in Campbellfield. No shortcuts. Just serious trailers.
Why the H2
- 3500kg Off-Road Coil Suspension: Heavy-duty coils on a tandem axle with 12" brakes. Soaks up corrugations, tracks straight loaded.
- Cruisemaster DO-35 Coupling: Articulates through ruts and washouts where a ball coupling binds.
- Serious Rubber: 5-stud Landcruiser-pattern rims on Cooper AT3 285/75 tyres, with a matching underslung spare.
- Built to Carry: RKC headboard, solid mounted sides, 8 flush tie-down points and a rope rail. Strap it down and go.
- Armoured Finish: Tuff Coat protection paint, TuffDek stone shielding on the drawbar, and RKC rear skid rails with recovery points.
Specifications
| Price | $25,000 inc GST (as built) |
| Model | Roadking Hauler H2 |
| ATM | 3,500kg |

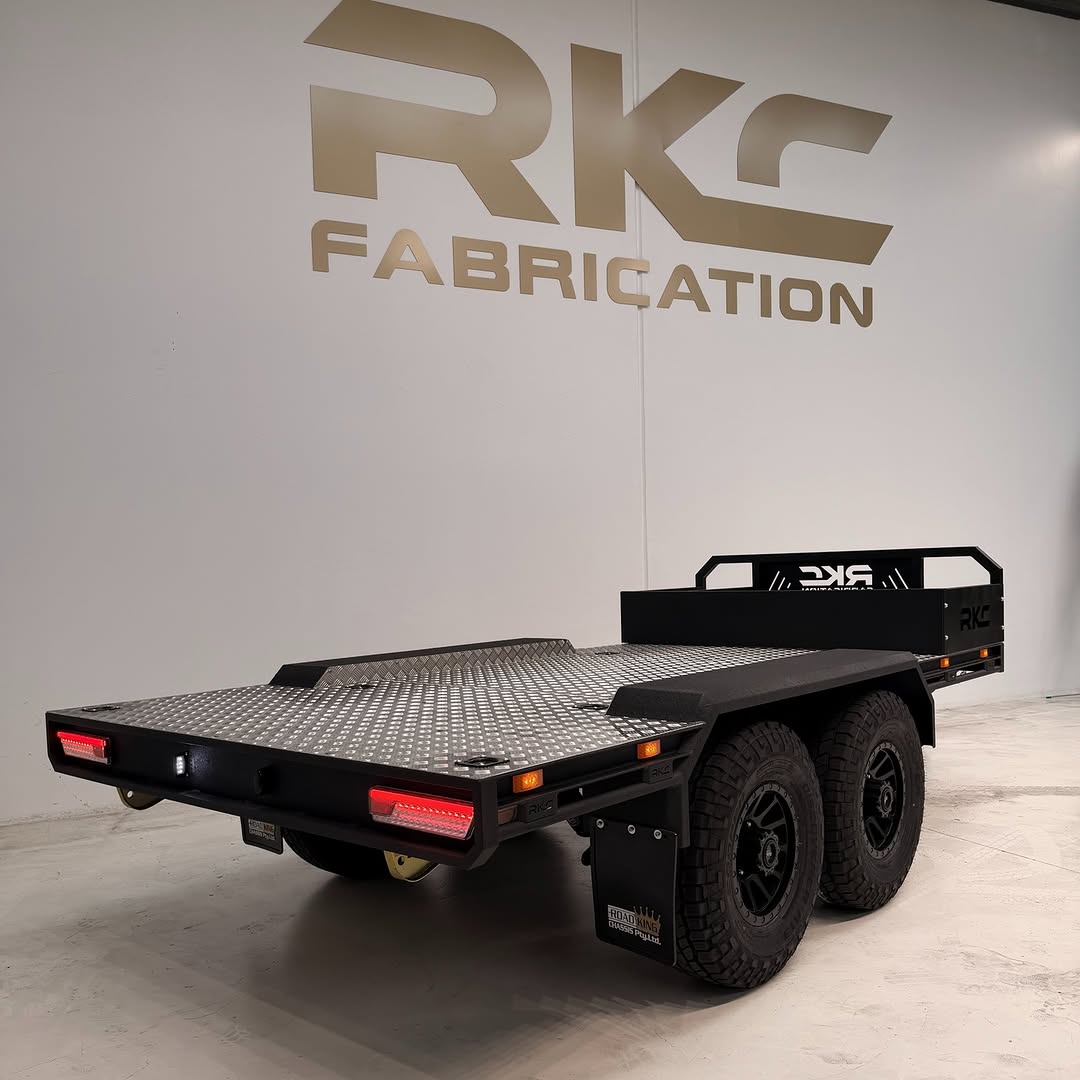

| Deck Size | 4000mm × 2100mm (13'1" × 6'11") |
| Overall Length | 5950mm (19'6") approx. |
| Chassis | Australian-made Duragal, 150×50×3mm main rails with 50×50×3mm raiser |
| Drawbar | 1950mm, 150×50×4mm |
| Coupling | Cruisemaster DO-35 |
| Safety Chains | 3.5T bolt-on |

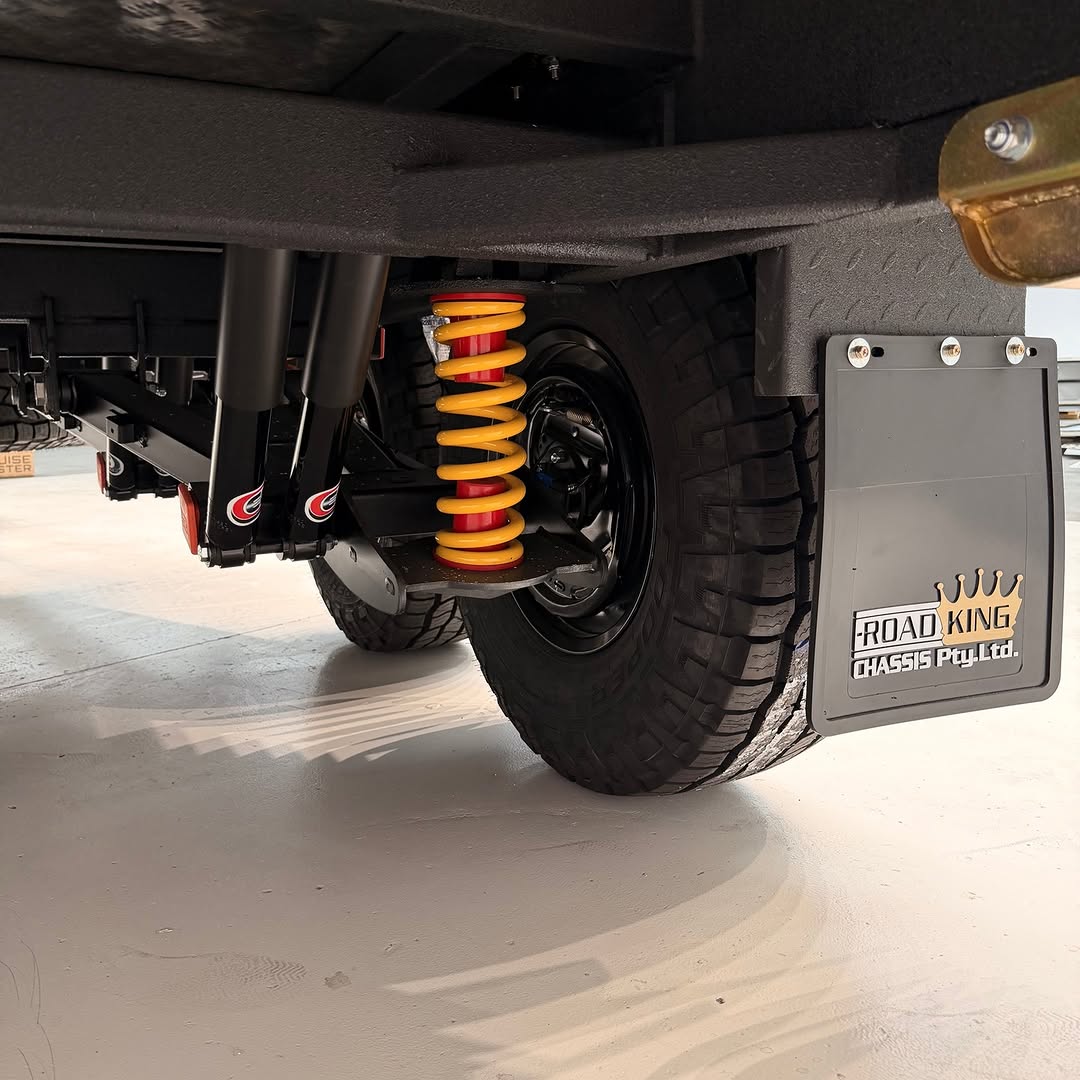

| Suspension | Heavy-duty off-road coil, 3500kg tandem |
| Brakes | 12" drum |
| Wheels | 5 × 5-stud Landcruiser-pattern rims (incl. spare) |
| Tyres | Cooper AT3 285/75 |
| Spare Wheel | Included, underslung holder |
| Floor | 3mm aluminium, pop-riveted |

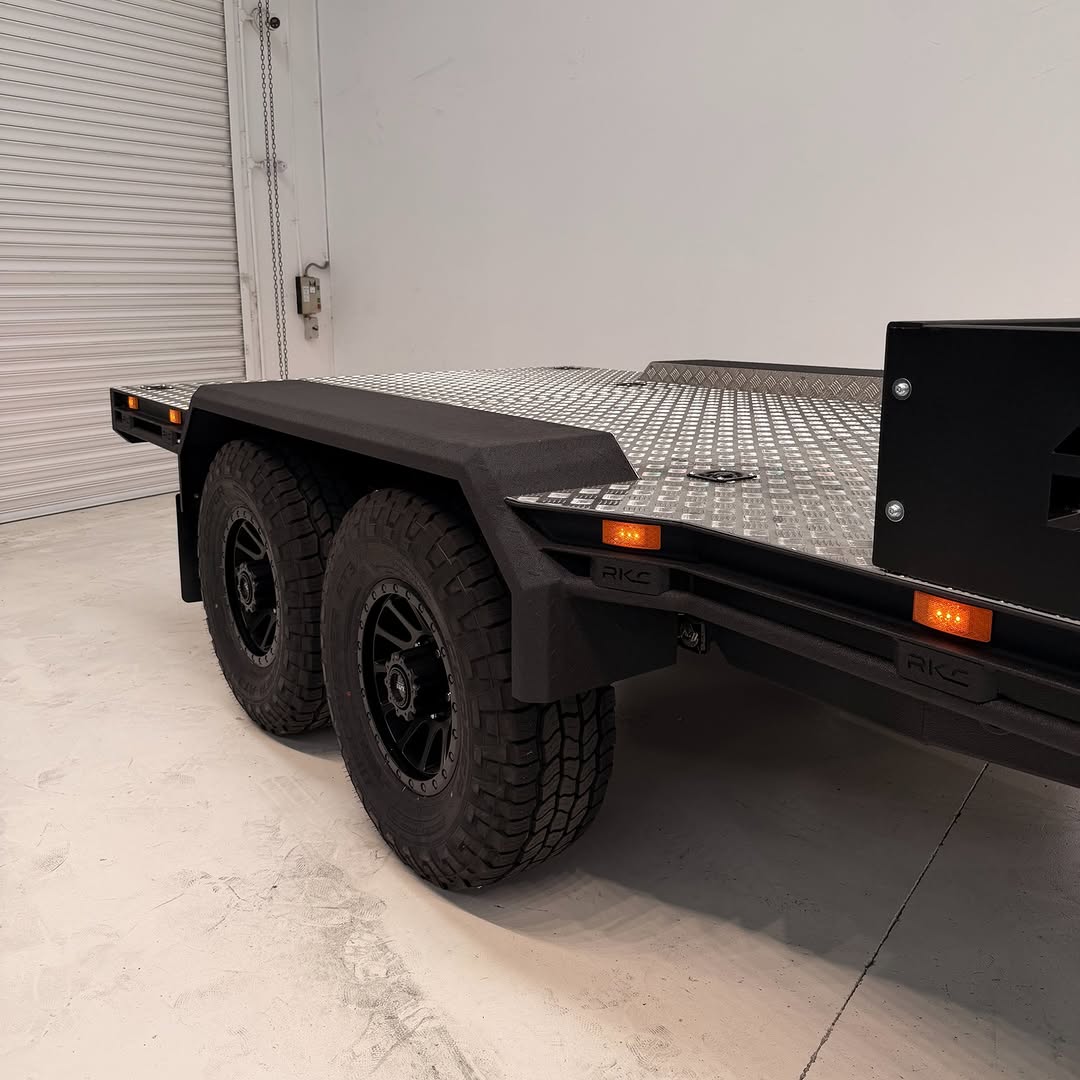

| Wheel Arches | Raised 50mm steel checker plate |

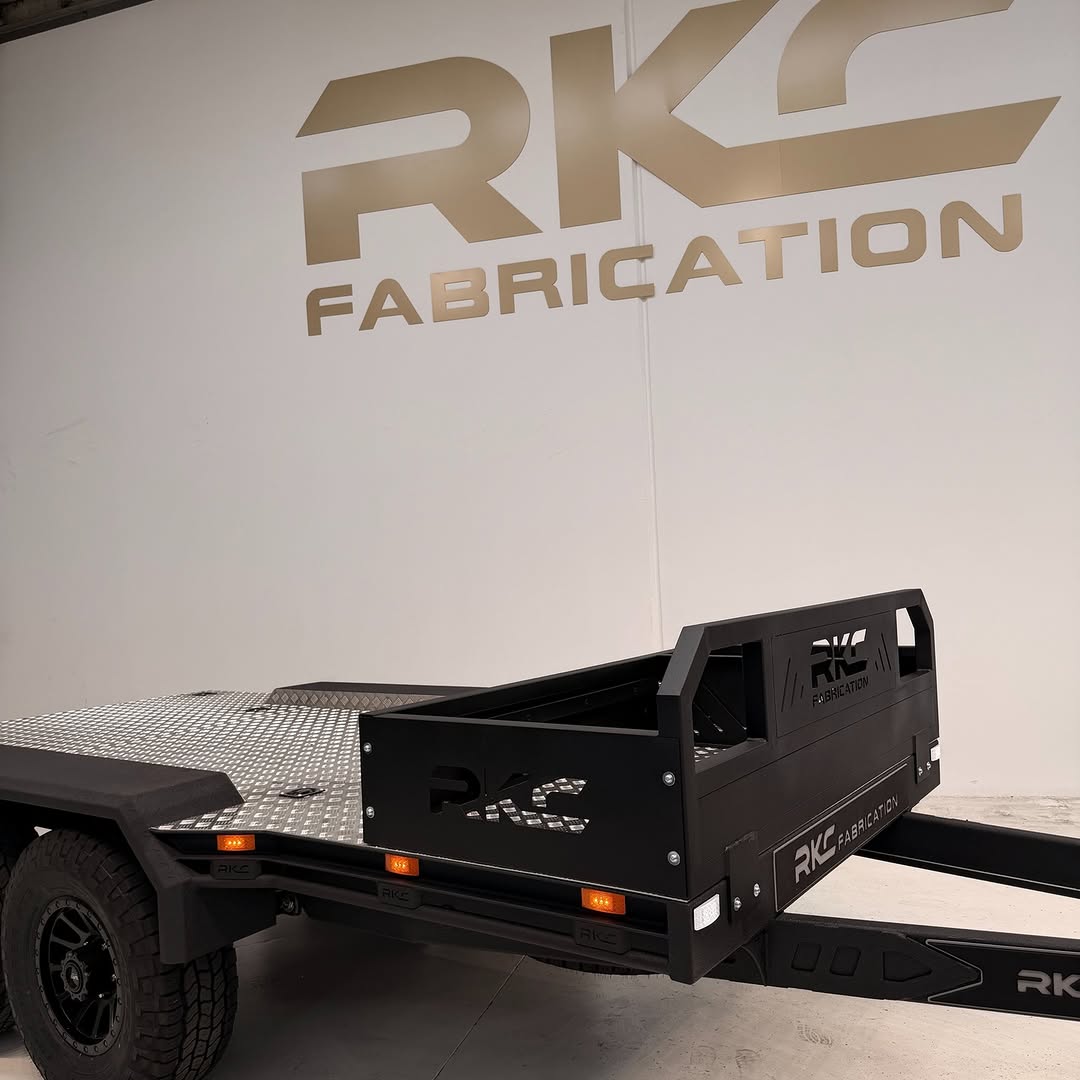

| Headboard | RKC headboard |
| Sides | Solid mounted, C-channel with recessed lights |
| Tie-Down Points | 8 × flush mount |
| Side Rail | RKC rope rail |

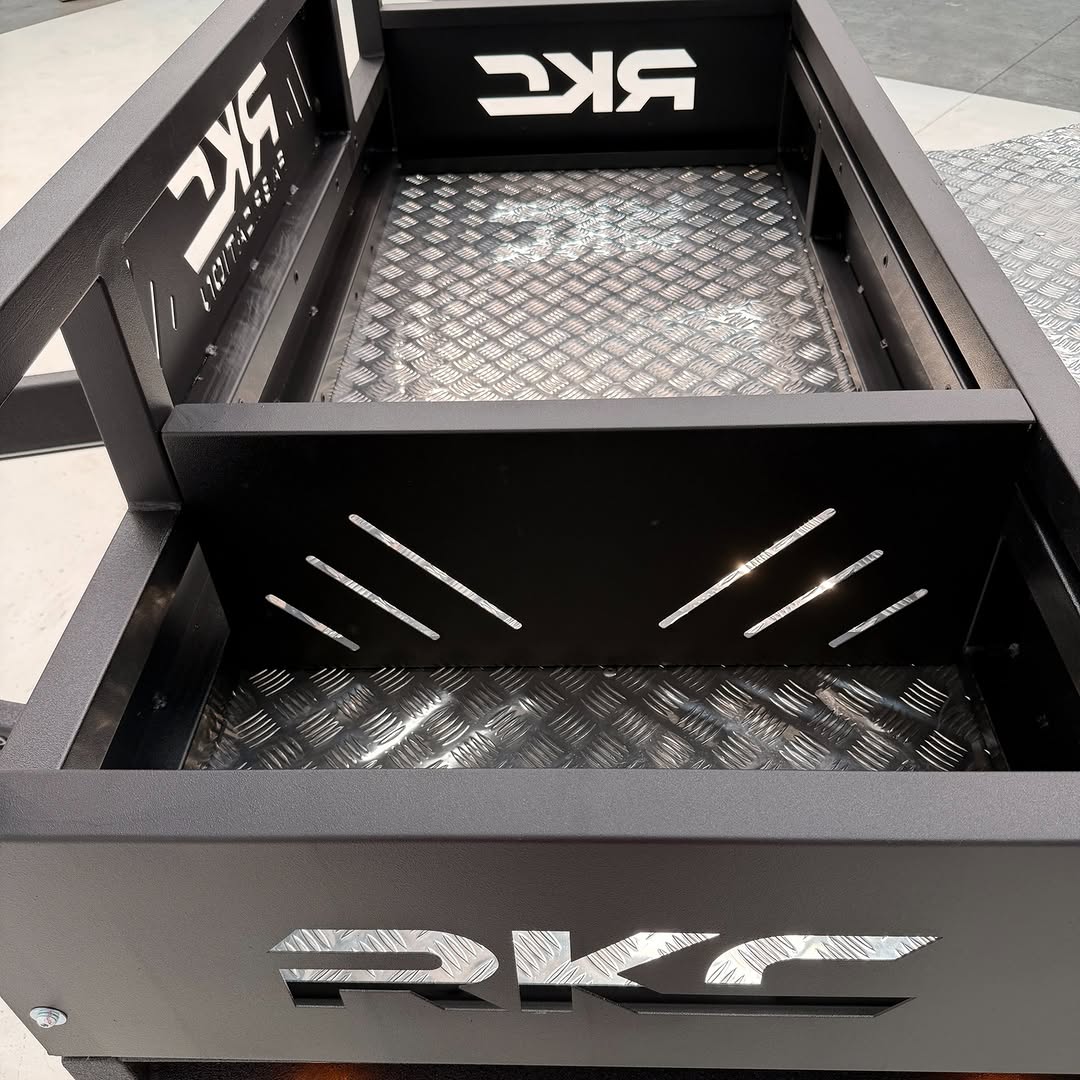

| Jerry Can Holders | 2 |

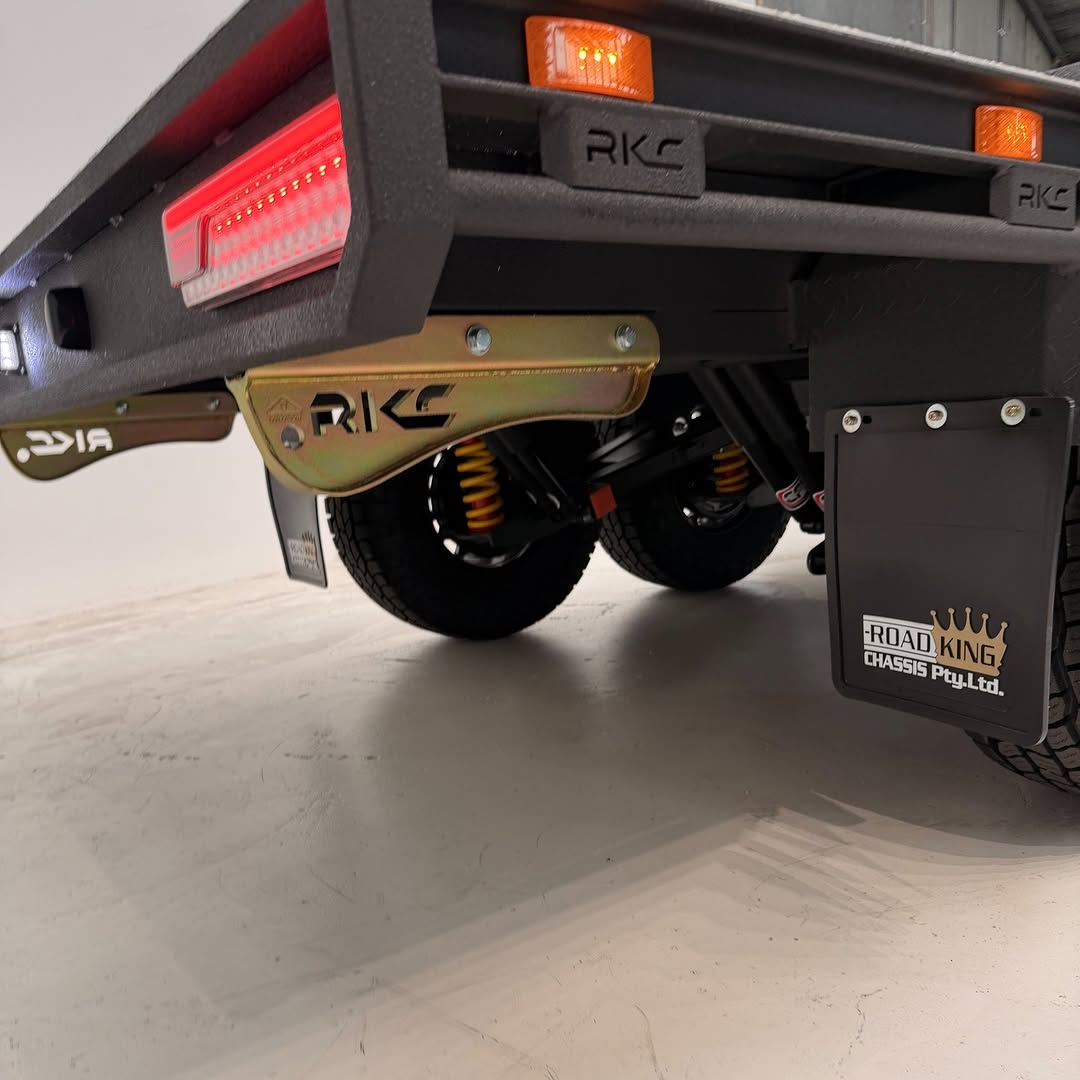

| Rear Protection | RKC rear skid rails & recovery points, taillight housing |
| Finish | Tuff Coat protection paint |
| Stone Shielding | TuffDek on drawbar |
| Lighting | RKC light package with breakaway system |
| Electrical | 7-pin trailer plug |
| Jockey Wheel | Heavy duty |
| Lead Time | 4–8 weeks from signed plans |
Frequently Asked Questions
What can the H2 Hauler carry?

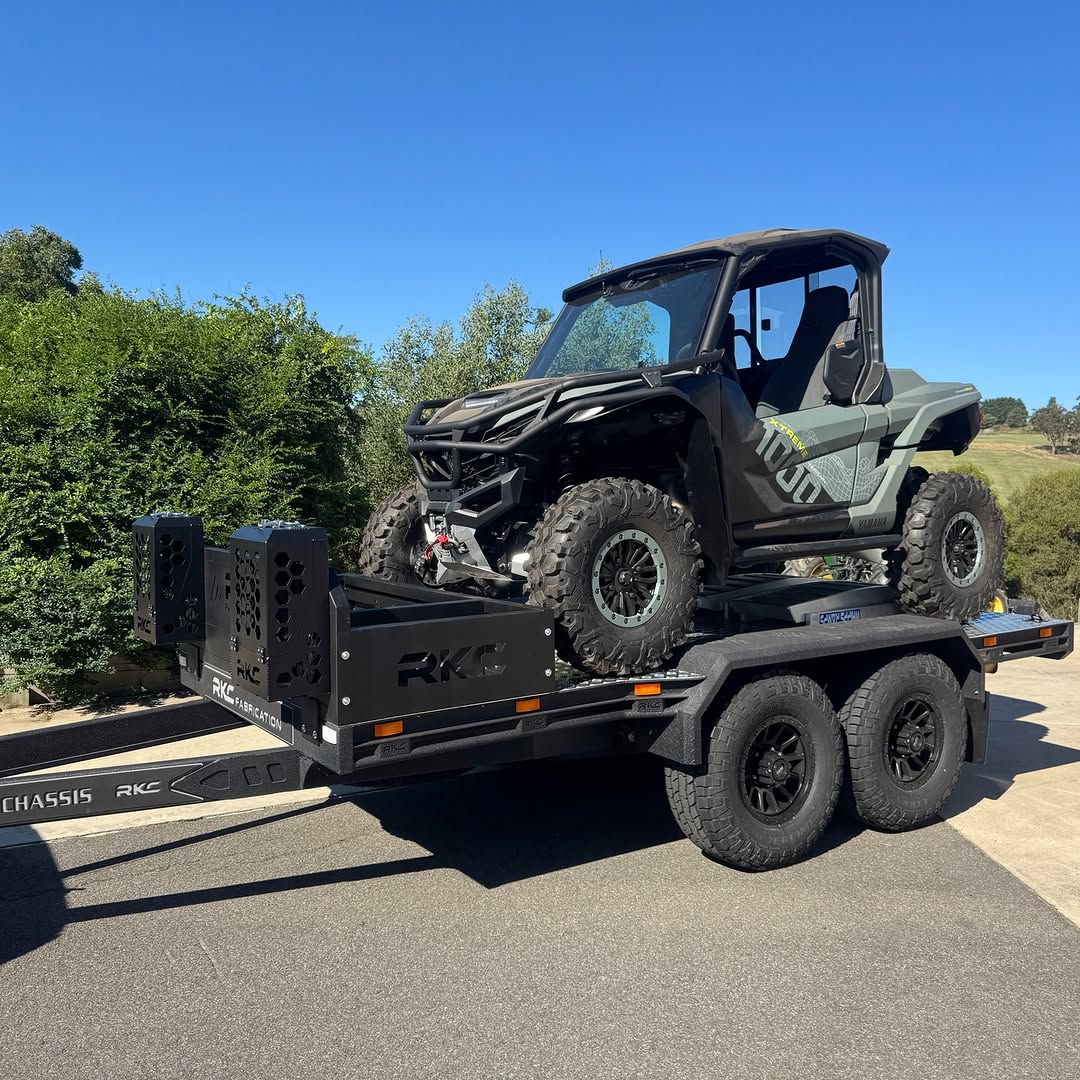

Quads, side-by-sides, dirt bikes, equipment or general gear. It's rated to a 3,500kg ATM on a 4.0 × 2.1M deck with 8 flush tie-down points.
How much does the H2 Hauler cost?
$25,000 inc GST as built, including headboard, sides, underslung spare, Landcruiser-pattern rims with Cooper AT3s and twin jerry can holders.
What's the difference between the H1 and H2?
The H2 is our heavy-duty off-road model: coil suspension, Cruisemaster DO-35 coupling, 12" brakes, 16"-class off-road wheels and Tuff Coat protection. The H1 is a lighter-duty flat-floor hauler on beam axles.
Can you build it in a different size?
Yes. We custom build to any size, from 2 metres to over 10 metres. Standard H2 sizes run from 4.0M single to 7.2M tandem.
How long does it take to build?
Usually 4–8 weeks from signed plans, depending on build complexity.
Where is it made?
In Campbellfield, Victoria, by Roadking Chassis. We deliver Australia-wide and to New Zealand. Ask us for a freight quote.
How Your Build Works
- Quote: Tell us what you're hauling. We'll spec it to suit.
- Plans: Once your deposit is in, our drafting team sends a floor plan with every measurement and option.
- Build Slot: Sign off the plans and your slot is locked in — usually 4–8 weeks out.
- Updates: You'll hear from us at the start, halfway and near completion.
- Handover: Photos of the finished build, final payment, then it's yours.
Built tough. Built right. Built Roadking. Message us to start your build.
