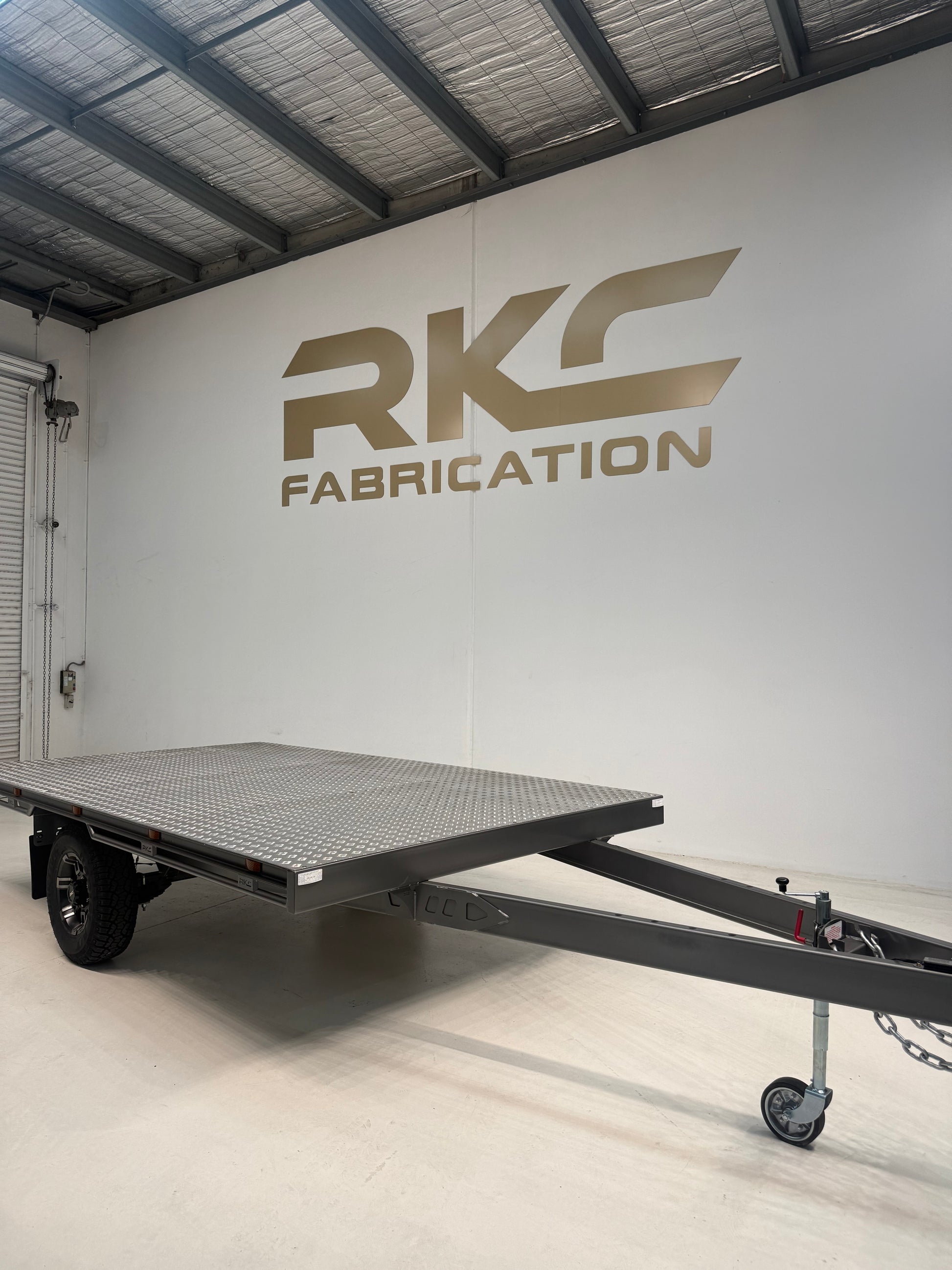

Roadking H1 Hauler Single Axle

Roadking H1 Hauler Single Axle

Regular price $9,500.00 AUD
Regular price Sale price $9,500.00 AUD
Sale Built to order
Shipping calculated at checkout.
Quantity

Built in Melbourne. 4–8 weeks from order.

This is a build-to-order item. Send us your details and we'll come back to you with pricing, freight and lead time.

Or call 03 9473 0875

Australian Owned
Secure Checkout
Fast Dispatch
Flat rate shipping across Australia $40 to east coast  •  $60 to WA & NT

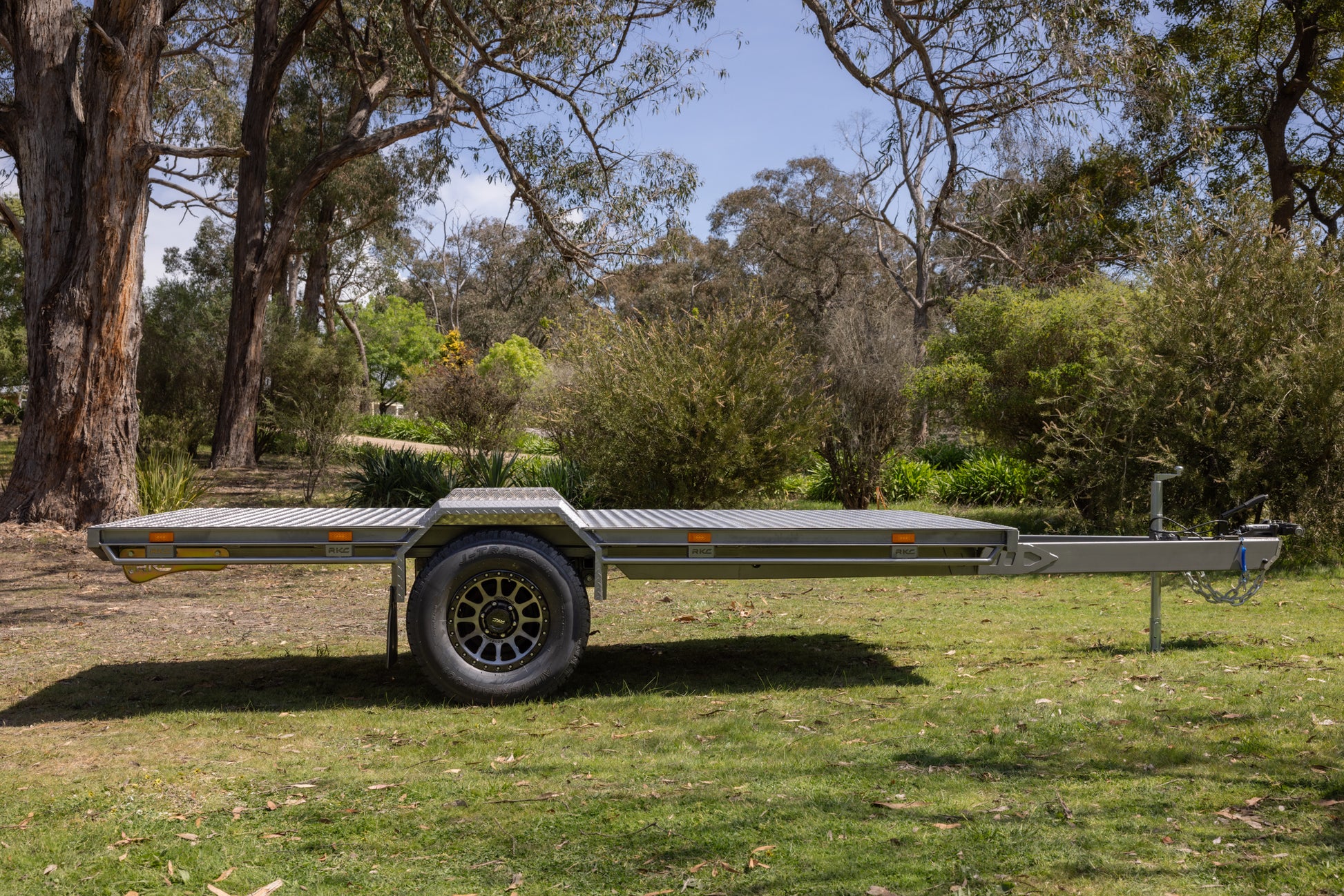

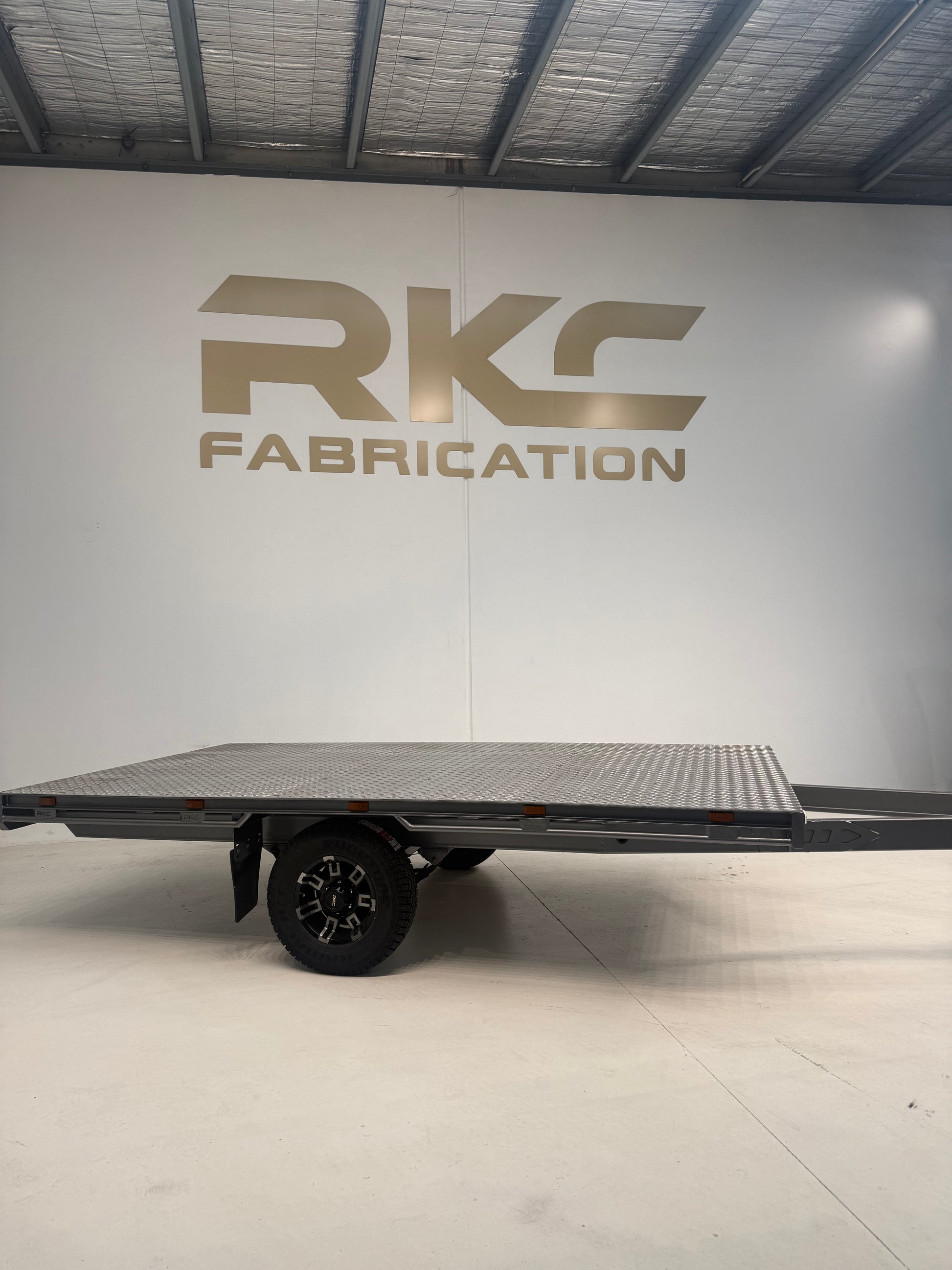

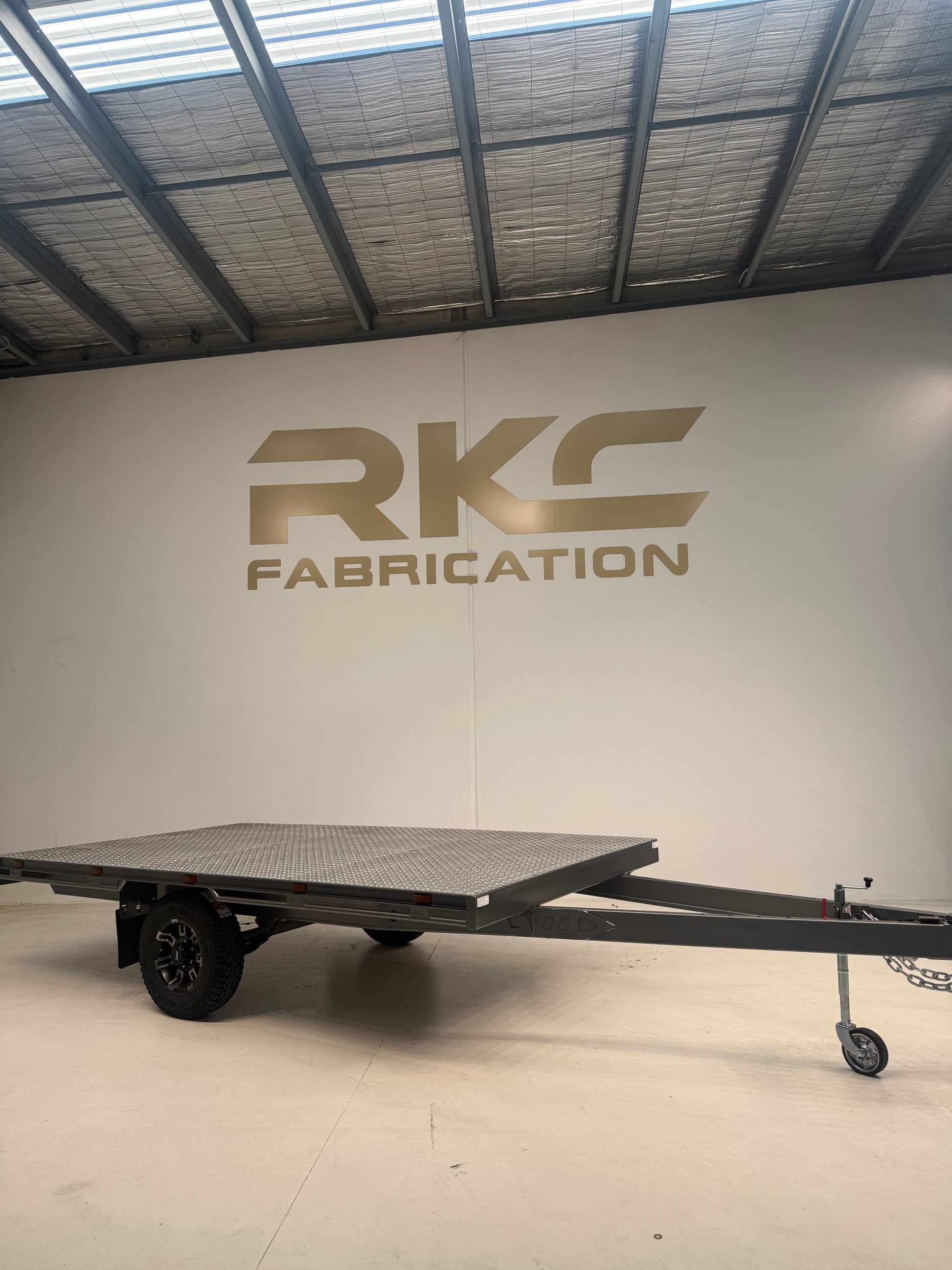

Wheel arches steal deck space. The H1 doesn't have any. A 4.0 × 2.3M (13 × 7.5ft) flat aluminium deck on a 2500kg-rated single axle with 12" electric brakes — $9,500 inc GST. Dirt bikes, a quad, tools or materials roll straight on. Built in Campbellfield. No shortcuts. Just serious trailers.

Why the H1

  • Flat Floor, No Arches: 9.2m² of clear deck. Load wall to wall, from any angle.
  • 12" Electric Brakes: On a 2500kg-rated single beam axle. Stops loaded, every time.
  • Duragal Chassis: 150×50×3mm main rails with a 150×50×3mm raiser. Galvanised, made in Melbourne, built to last.
  • 15" Alloys on A/T Rubber: 235/75 all-terrains. Happy on the highway and the gravel into camp.
  • Easy to Live With: Single axle, light to hitch and manoeuvre. Welded taillight housing protects the lights.

Specifications

Price $9,500 inc GST
Model Roadking Hauler H1 Single Axle
Deck Size 4000mm × 2300mm (13'1" × 7'7")

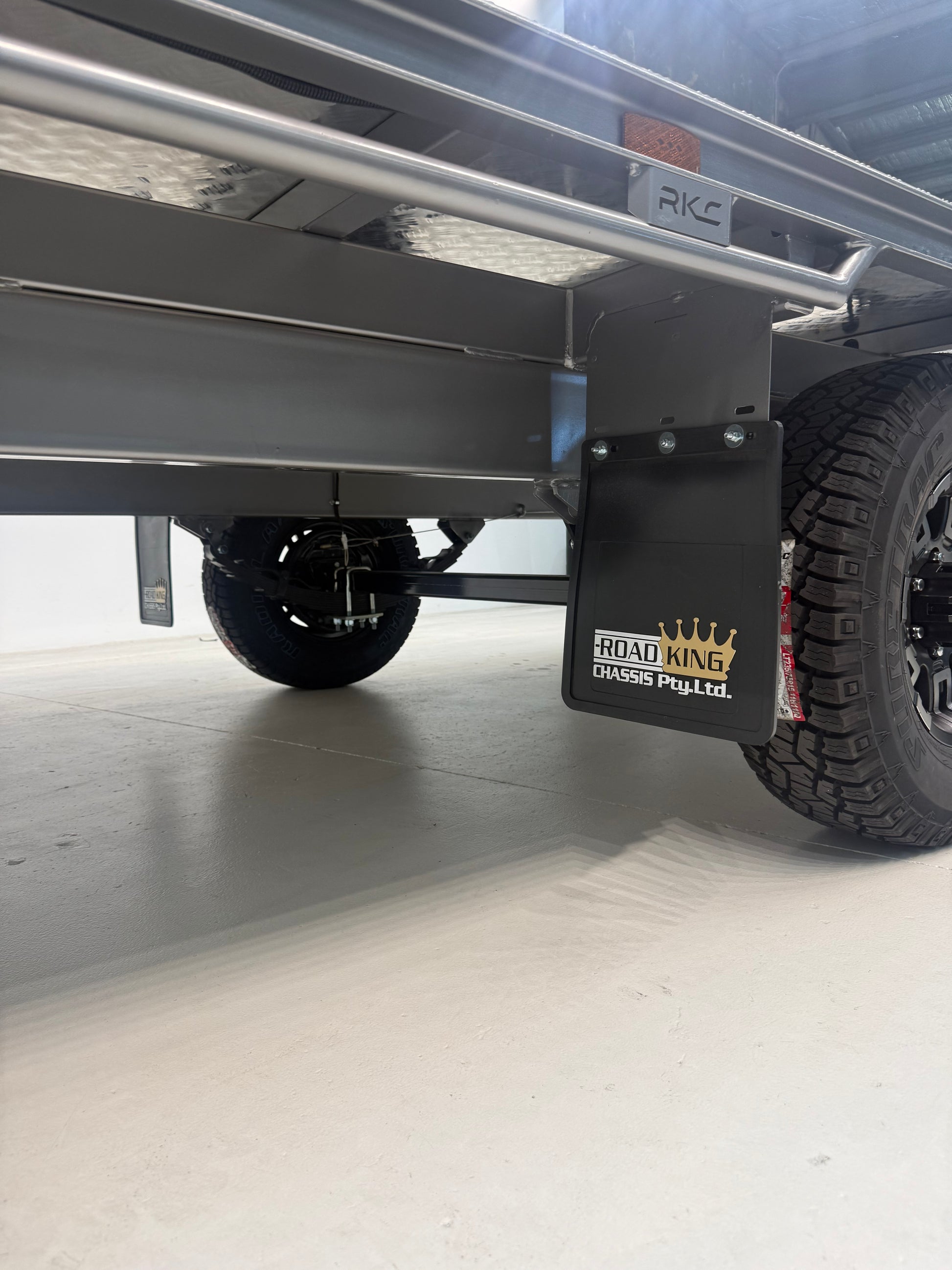

Axle Single beam axle, 2500kg rated
Brakes 12" electric drum
Chassis Australian-made Duragal, 150×50×3mm main rails + 150×50×3mm raiser

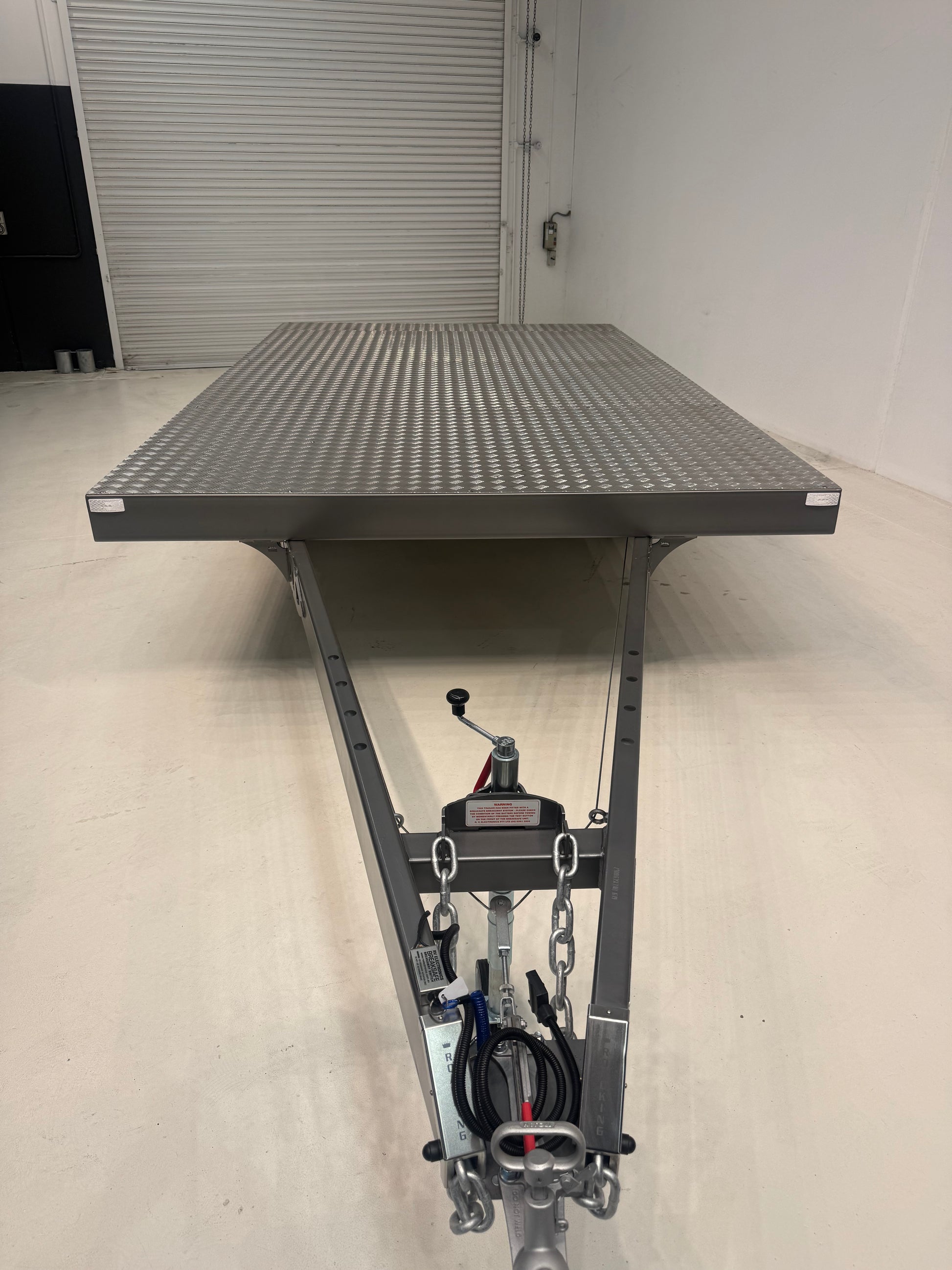

Drawbar 1950mm, 150×50×4mm

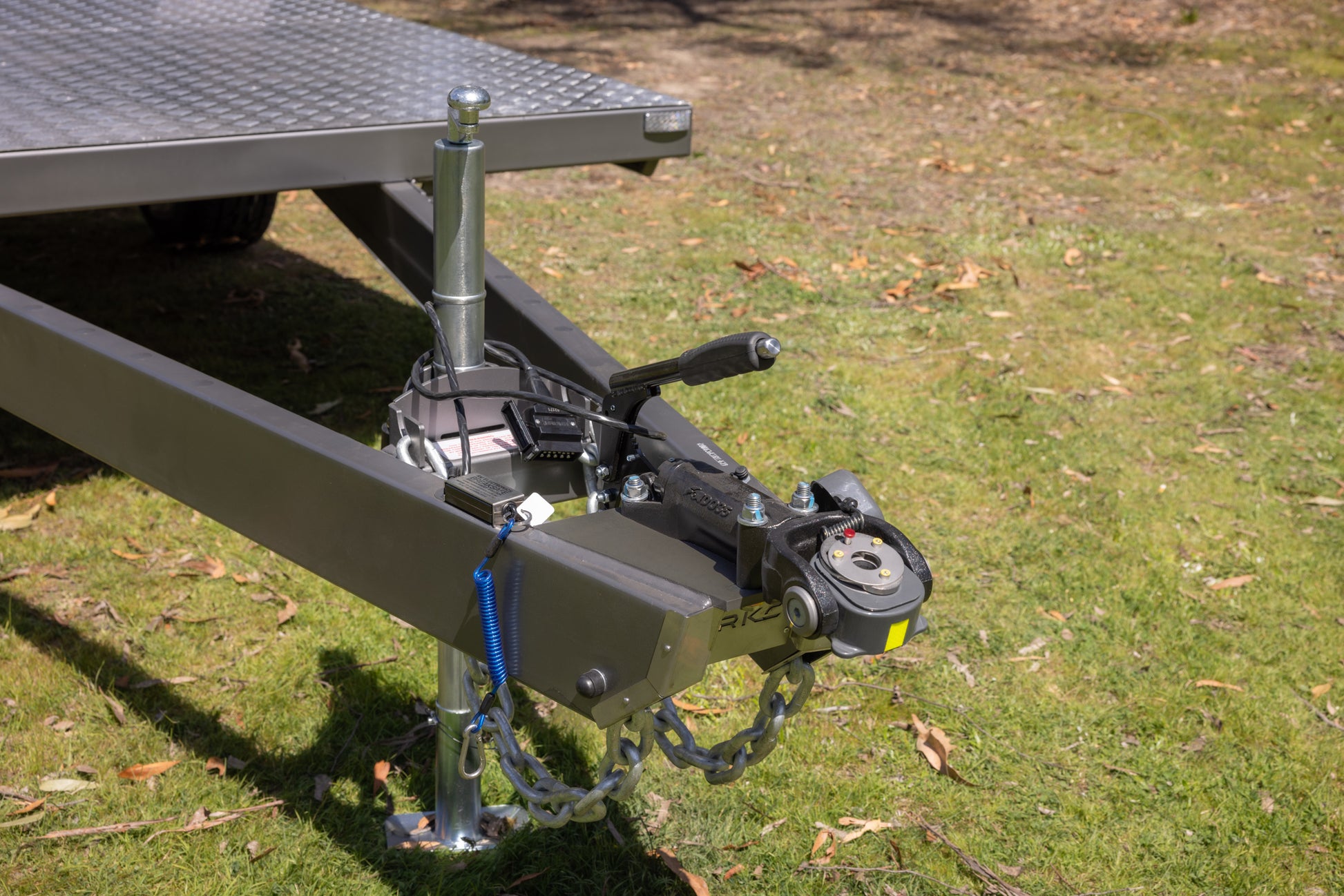

Coupling 50mm ball coupling
Safety Chains 3.5T bolt-on

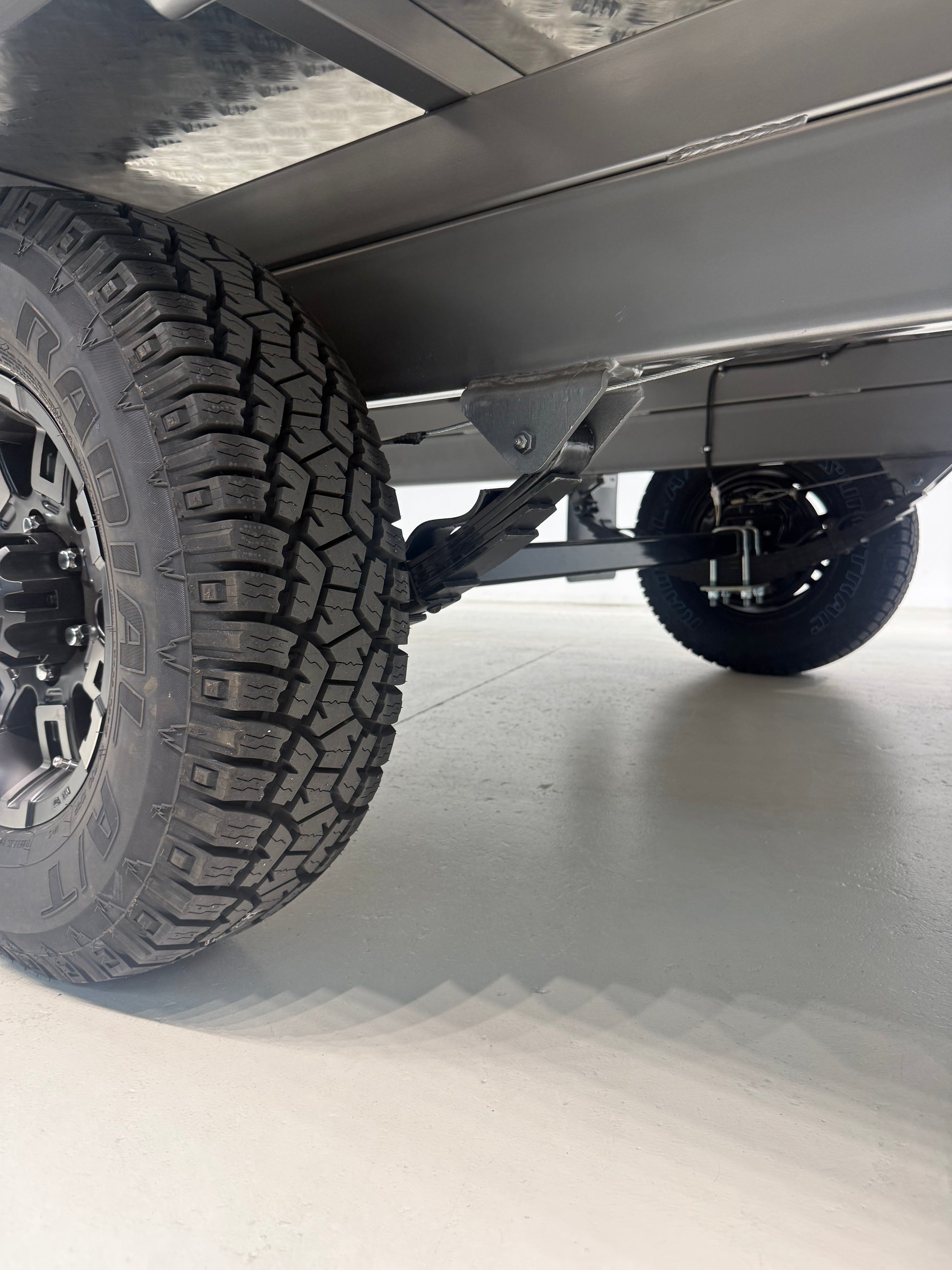

Wheels & Tyres 15" alloys, 235/75 all-terrain
Floor 3mm aluminium, pop-riveted
Deck Layout Flat floor, no wheel arches
Sides C-channel with recessed lights
Side Rail RKC rope rail
Rear Welded taillight housing
Lighting RKC light package with breakaway system
Electrical 7-pin trailer plug
Jockey Wheel Heavy duty
Finish Gunmetal
Lead Time 4–8 weeks from signed plans

Popular Upgrades

  • Cruisemaster DO-35 coupling
  • Off-road coil suspension
  • 16" wheel package
  • Rear skid protection
  • Perforated transporter floor
  • 2.3M aluminium ramps
  • Flush tie-downs
  • Spare wheel & jerry can holders

Frequently Asked Questions

How much does the H1 single axle cost?

$9,500 inc GST as specified here. Upgrades are quoted to suit your build.

What can it carry?

Dirt bikes, a quad, tools, materials or general gear. The 4.0 × 2.3M flat floor has no wheel arches, so wide loads sit flat.

Single or tandem — which do I need?

Single axle is lighter, cheaper and easier to manoeuvre by hand. Go tandem for heavier loads, longer decks and more stability at speed. We build the H1 in both.

Can you build it in a different size?

Yes. Standard H1 sizes run from 4.0M single to 7.2M tandem, and we custom build from 2 metres to over 10 metres.

Where is it made?

In Campbellfield, Victoria, by Roadking Chassis. We deliver Australia-wide and to New Zealand. Ask us for a freight quote.

How Your Build Works

  1. Quote: Tell us what you're hauling. We'll spec it to suit.
  2. Plans: Once your deposit is in, our drafting team sends a floor plan with every measurement and option.
  3. Build Slot: Sign off the plans and your slot is locked in — usually 4–8 weeks out.
  4. Updates: You'll hear from us at the start, halfway and near completion.
  5. Handover: Photos of the finished build, final payment, then it's yours.

Built tough. Built right. Built Roadking. Message us to start your build.
