Roadking Chassis Pty Ltd
BOS 3 Rib Gearbox Jockey Wheel Unit – Heavy Duty Caravan Trailer Jockey Wheel
BOS 3 Rib Gearbox Jockey Wheel Unit – Heavy Duty Caravan Trailer Jockey Wheel
Regular price
$515.00 AUD
Regular price
Sale price
$515.00 AUD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Australian Owned
Secure Checkout
Fast Dispatch
Flat rate shipping across Australia
$40 to east coast • $60 to WA & NT

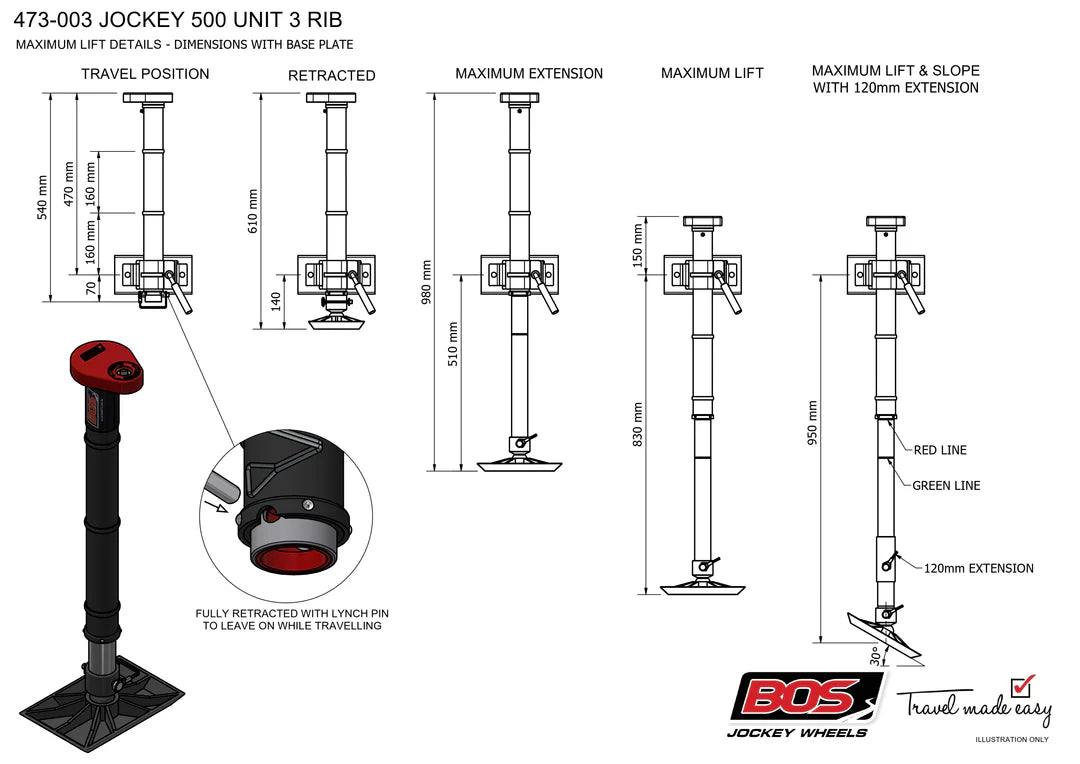

Drill-driven gearbox jockey unit, tested to 1,800kg with 400mm of travel. Fits existing 50mm jockey clamps only – for 60mm clamps, choose the BOS Black Ops 4 Lug.
Which BOS unit do I need?
| 3 Rib | Black Ops 4 Lug | |
|---|---|---|
| Fits clamp | 50mm | 60mm |
| Extended travel | 400mm | 350mm |
| Tested to (rigid clamp) | 1,800kg | 1,800kg |
| Unit weight | 5.5kg | 6.8kg |
| Price | $515 | $535 |
How to check your clamp: measure across the round tube your current jockey wheel slides into. Around 50mm = 3 Rib; around 60mm = Black Ops. No clamp yet? Add the BOS Double Clamp 50mm.

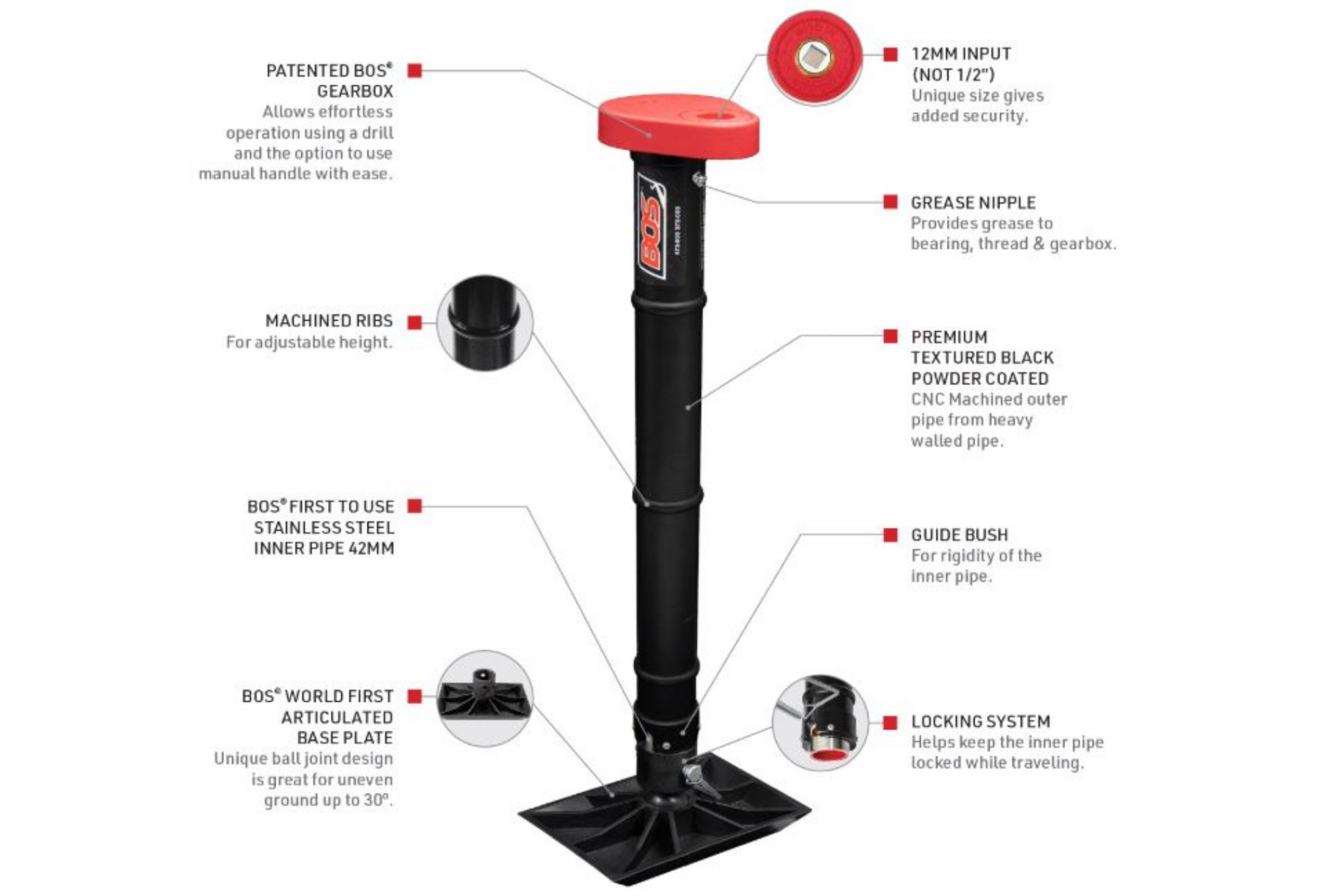

Features
- Patented BOS gearbox with a unique 12mm drive set – run it with a cordless drill, manual handle as backup.
- LMATS tested up to 1,800kg in a rigid clamp setup.
- 400mm extended travel.
- Can stay on while travelling, locked with a medium clutch setting and the BOS travel strap.
- Articulated base plate adjusts to uneven ground up to 30° – great if you have no need for a wheel.
- 120mm pipe extension for extra height.

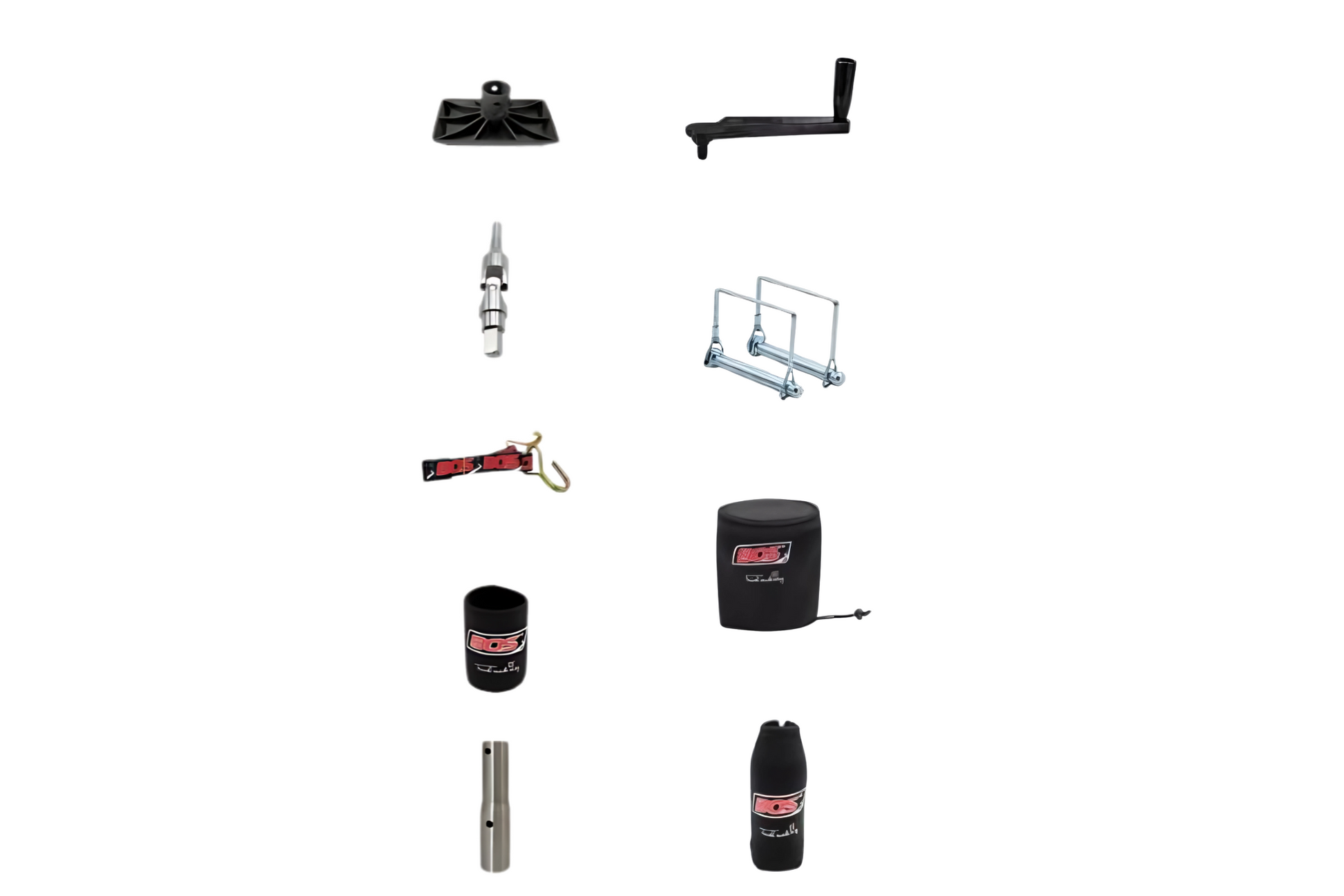

In the kit
- Articulated base plate
- 12mm drill drive piece
- Manual handle
- Travel strap
- Stainless steel extension 120mm
- 2 x quick release pins
- Jockey weather cover
- Bonus stubby holder and stubby bottle cooler
Unit weight: 5.5kg. Shipping size: 60 x 26 x 16cm, 10kg. Kit number: 473-003.
