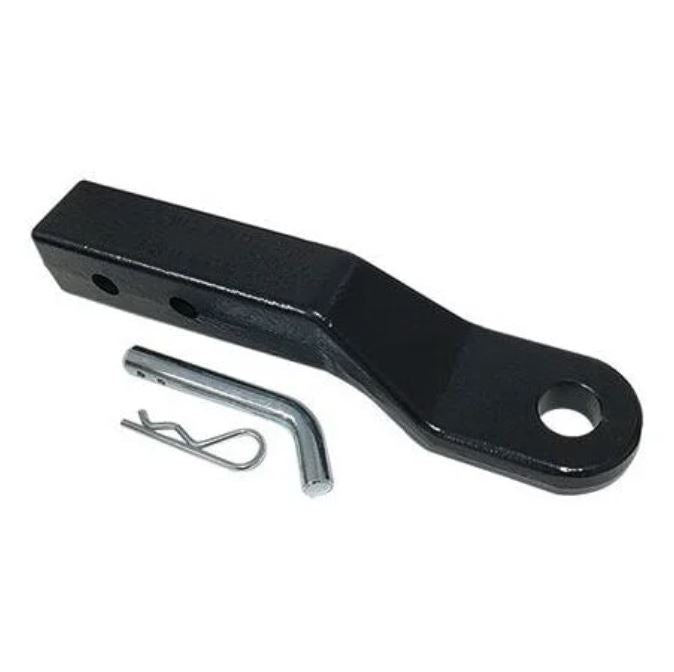

4.5t x 2-inch Drop Tow Hitch Receiver

4.5t x 70mm Tow Ball Tow Hitch Receiver with a 2-Inch Drop

A tow bar receiver hitch kit is a set of components that allows you to attach your trailer or caravan to your tow vehicle.

Couplemate™ 70mm Tow Ball Tow Hitch Receivers are made from solid cast iron. Due to their robust material, genuine Couplemate trailer hitches ensure a strong connection between your trailer and tow vehicle.

Over time, cast steel products have proven to be superior to fabricated or welded products. Welded ball mounts and hollow receivers can distort under off-road conditions and shock-loading events on the highway. When inverted, hollow hitches are more susceptible to deformation.

t can also be used with the Cruisemaster DO45 tow pin for versatility.

You can trust the quality and durability of our 70mm receiver hitches, which are expertly cast, machined, and tested in Australia.

2-inch Drop 70mm Towbar Receiver Product Specifications

• Material: Cast ductile iron (500/7)
• Maximum Capacity: 4.5t
• Shank hole: 32mm
• Does not come with a 70mm tow ball.

This product also suits the shank size for 2 5/16″ tow balls (American size).

CM523 | 50mm Drop Measurements

Key measurements:

• Total length:
  • 340mm
• Centre hole of the tow ball to the pin centre holes:
  • 206mm
  • 256mm
• From the hitch pinhole to the drop:
  • 65mm
  • 115mm
